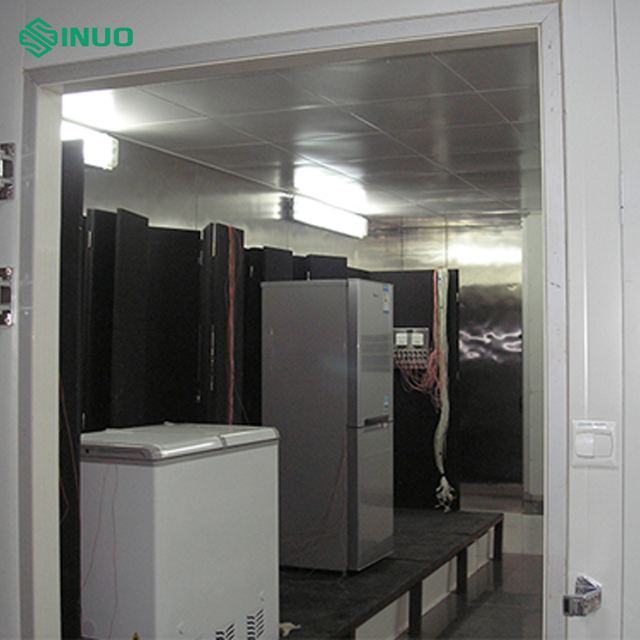

IEC 62552 Two Stations Refrigerator Energy Efficiency Test System
Overview
IEC 62552 Two Stations Refrigerator Energy Efficiency Test System supplied by Sinuo Testing Equipment Co. , Limited. Key published specifications: Temperature Adjust/Control; Humidity Adjust/Control; Applied Standards IEC 62552,etc.; Temperature Range 0°C To +50°C ±0.3°C. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Temperature | Adjust/Control |
|---|---|
| Humidity | Adjust/Control |
| Applied Standards | IEC 62552,etc. |
| Temperature Range | 0°C To +50°C ±0.3°C |
| Humidity Range | 35%RH To 93%RH ± 3.0%RH |
| Test Capacity Range | 210L~550L |
| Control Method | Computer & Software |
| Output Power | 5KVA |
| Compliance Standards | IEC 62552:2015 |
| Laboratory Structure | B1-grade 100mm thick polyurethane foam insulation panels |
| External dimensions | 4000mm W * 4000mm D * 3200mm H |
| Performance Parameters | Temperature range: 0°C to +50°C ±0.3°C |
| Wind speed | less than 0.25 m/s |
| Vertical temperature gradient | less than 0.88°C/m |
| Temperature & Humidity Control | Temperature controller: SR93 |
| Temperature controller | SR93 |
| Control range | 0°C to 50°C |
| Control accuracy | ±0.3°C |
| Humidity control range | 35% to 95% RH |
| Humidity control accuracy | ±3% RH |
| Measurement accuracy | ±0.3°C (-5°C to 80°C) |
| Temperature parameter acquisition | Yokogawa GM10, 40 channels |
| Control System | Temperature and humidity controller: SR93 |
| Temperature and humidity controller | SR93 |
| Programmable logic controller | Mitsubishi PLC |
| Construction & Materials | Stainless steel air handling cabinet (≥1.0mm thickness) |
