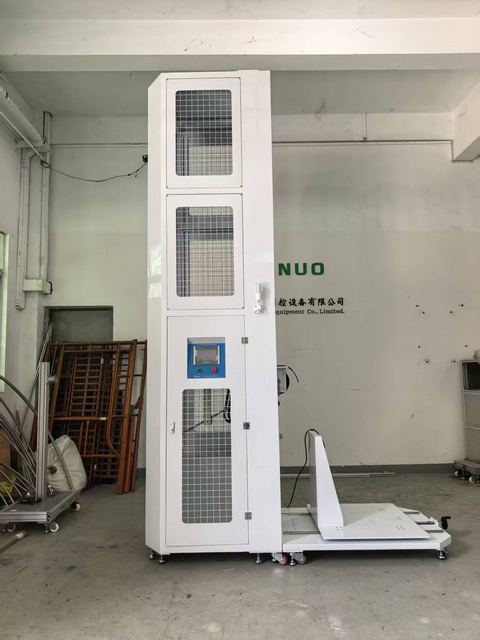

IEC 61851-1 EV Charger Pendulum Impact Test Equipment With Pendulum & Drop Hammer Test
Overview
IEC 61851-1 EV Charger Pendulum Impact Test Equipment With Pendulum & Drop Hammer Test supplied by Sinuo Testing Equipment Co. , Limited. Key published specifications: Sample Size Limit ≤ 1×1×2.0 m (platform), ≤ 2.5 m height; Transmission Ball screw + linear guide; Impact Energy Range 1J - 50J (IK06-IK11); Height Adjustment 200-2500 mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Sample Size Limit | ≤ 1×1×2.0 m (platform), ≤ 2.5 m height |
|---|---|
| Transmission | Ball screw + linear guide |
| Impact Energy Range | 1J - 50J (IK06-IK11) |
| Height Adjustment | 200-2500 mm |
| Base Plate | Heavy-duty steel plate |
| Structure | A3 steel with anti-corrosion coating |
| Impact Energy | 1J, 2J, 5J, 10J, 20J, 50J |
| Equivalent Mass | 250g, 500g, 1.7kg, 5kg, 10kg |
| Tube Diameter | 9mm / 10mm / 15.9mm |
| Release Method | Electromagnetic release |
| Lifting Method | Motorized (touchscreen input) |
| Anti-Secondary Impact | Yes |
| Height Range | 200-2500 mm |
| Drop Height | 0-500mm scale display, adjustable impact angle |
| Impact Position | Adjustable top surface impact |
| Platform Size | 1.0 × 1.2 m |
| Load Plate Thickness | 10 mm |
| Mounting | Threaded holes + fixtures |
| Mobility | Casters + locking mechanism |
| Emergency Stop | Yes |
| Overload Protection | Yes |
| Leakage Protection | Yes |
| Indicator Light | 3-color (Standby/Run/Alarm) |
| Stability | Heavy-duty frame with locking system |
| Swing Tube Length | 1000 Mm |
