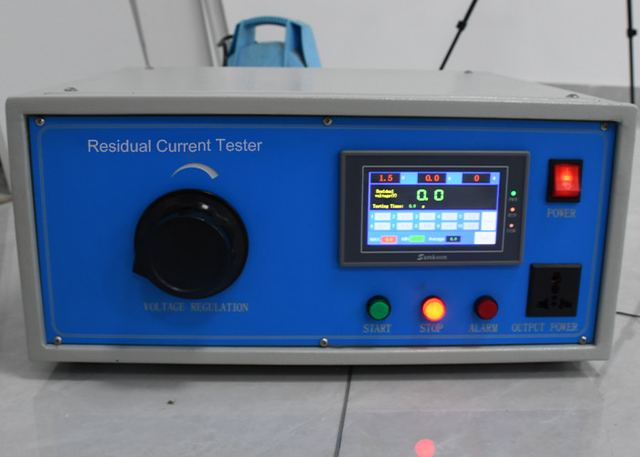

IEC 61009-1 Residual Current Protector Device Action Characteristic Tester
Model SN2502
Overview
IEC 61009-1 Residual Current Protector Device Action Characteristic Tester supplied by Sinuo Testing Equipment Co. , Limited. Key published specifications: Working Power Consumption Maximum 500W; Current Voltage Accuracy Class 1; current resolution 0.1mA; voltage resolution 0.1V; Current output range AC:5~2000mA; Output Voltage 0~250V. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Working Power Consumption | Maximum 500W |
|---|---|
| Current Voltage Accuracy | Class 1; current resolution 0.1mA; voltage resolution 0.1V |
| Current output range | AC:5~2000mA |
| Output Voltage | 0~250V |
| Timing Accuracy | 5mS, resolution 1mS |
| Dimension | 430mm×370mm×280mm |
| Weight | About 30 KG |
| Applied Standards | IEC61009-1,IEC60898-1,IEC61008-1 |
| Power Consumption | Maximum 500W |
