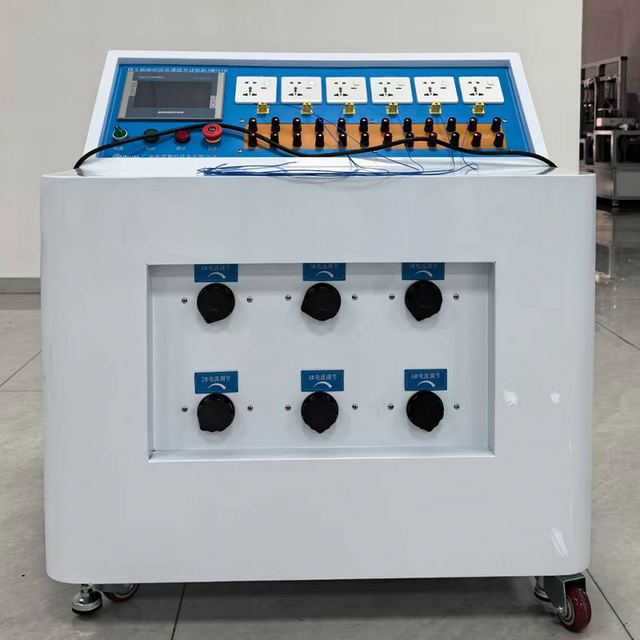

IEC 60884-1 6-Station Socket Temperature Rise Test Equipment For Household Plug & Socket Test
Model SN2119-6
Overview
IEC 60884-1 6-Station Socket Temperature Rise Test Equipment For Household Plug & Socket Test supplied by Sinuo Testing Equipment Co. , Limited. Key published specifications: Control System PLC with touchscreen operation; Test Stations 6 independent, adjustable stations; Test Current Range 0-30A (adjustable, displayed on touchscreen); Current Resolution 0.1A. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Control System | PLC with touchscreen operation |
|---|---|
| Test Stations | 6 independent, adjustable stations |
| Test Current Range | 0-30A (adjustable, displayed on touchscreen) |
| Current Resolution | 0.1A |
| Test Voltage | <12V |
| Current Display Accuracy | ±0.5%FS ±2 digits |
| Dimensions (W × D × H) | ~600 × 600 × 600 mm |
| Weight | ~100 kg |
| Power Supply | AC 220V ±10%, 50/60Hz |
| Operating Environment | Temperature: 0-40°C; Humidity: 30%-90% RH |
| Current Range | 0–30A |
| Temperature Measurement | Temperature Instrument |
| Temperature | 0-40°C; Humidity: 30%-90% RH |
