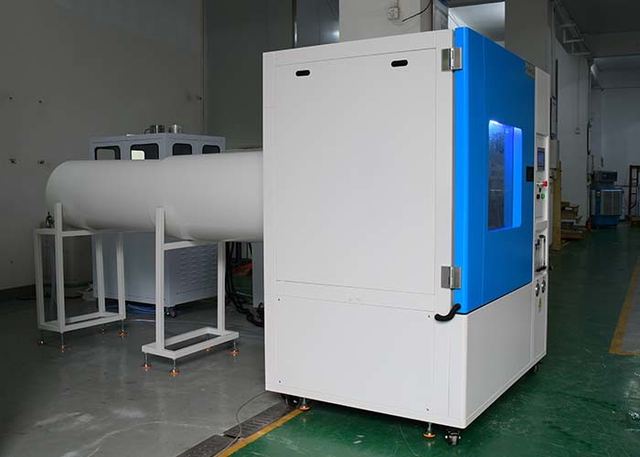

IEC 60529 All in One Integrated Waterproof Test Chamber for IPX1~IPX6 Tests 1000L
Overview
IEC 60529 All in One Integrated Waterproof Test Chamber for IPX1~IPX6 Tests 1000L supplied by Sinuo Testing Equipment Co. , Limited. Key published specifications: Technical Parameters Basic Parameters; Inner Chamber Size L1000*W1000*H1000mm; Outer Chamber Size L1480*W3800*H1800mm; Turntable Diameter ￠400mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Technical Parameters | Basic Parameters |
|---|---|
| Inner Chamber Size | L1000*W1000*H1000mm |
| Outer Chamber Size | L1480*W3800*H1800mm |
| Turntable Diameter | ￠400mm |
| Turntable Maximum Load Bearing | 10KG |
| Turntable Speed | 1-5r/min (adjustable) |
| Test Time | 0-999 min |
| Equipment dimensions | Approx.2770mm(L)*1330mm(W)*1750mm(H) |
| Total Weight | Approx. 350kg |
| Required site place | 3.2m(L)*2m(W)*2m(H) |
| Drip area | 600*600mm |
| IPX12 nozzle size | Diameter 0.4mm |
| Distance between drip holes | 20*20 mm |
| Water flow | IPX1=1mm/min; IPX2=3mm/min |
| Drip board lifting method | Not lifting (fixed) |
| Oscillation Tube | R200 mm and R400mm |
| Distance between Nozzle Sample | Within 200mm |
| Spray Aperture Spacing | 50 mm |
| Angle Between Two Holes | 120°(IP3) 180°(IP4) |
| Needle Hole | φ0 .4 mm |
| Oscillating Speed | IPX3: 15times/min; IPX4: 5times/min |
| Water Flow of Each Hole | 0.07 L/min +5% |
| Spray Pressure | 80-150Kpa |
| IPX5 Nozzle Jet Aperture | 6.3mm |
| IPX6 Nozzle Jet Aperture | 12.5mm |
| IPX6 Jet Flow | 100±5L/min |
| Nozzle Fixed Method | Mechanical fixing |
| Power Supply for Equipment | 380V, 50Hz |
