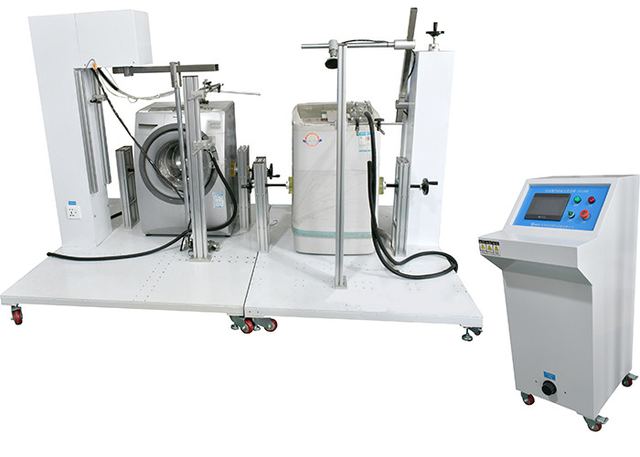

IEC 60335-2-7 Durability Test Equipment For Electric Washing Machine Doors
Model SN1401
Overview
IEC 60335-2-7 Durability Test Equipment For Electric Washing Machine Doors supplied by Sinuo Testing Equipment Co. , Limited. Key published specifications: Test stations 2 independent stations; Station 1 Tumble washing machine with door; Station 2 Pulsator washing machine with lid; Control method PLC intelligent integrated control. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Test stations | 2 independent stations |
|---|---|
| Station 1 | Tumble washing machine with door |
| Station 2 | Pulsator washing machine with lid |
| Control method | PLC intelligent integrated control |
| Operation interface | 7-inch touch screen |
| Drive mode | Servo motor drive |
| Specimen clamping | Vacuum suction cup, pneumatic |
| Door/lid opening or closing speed | 0-360 degrees/s, up to 1.5m/s, presettable |
| Door/lid opening or closing angle | 0-130 degrees, presettable |
| Test times | 0-999999 times, presettable |
| Load voltage | 0-250V, adjustable |
| Equipment size | Approx. 2500 x 1200 x 1500mm |
| Equipment weight | Approx. 280kg |
| Speed | 0-360°/s(1.5m/s) |
