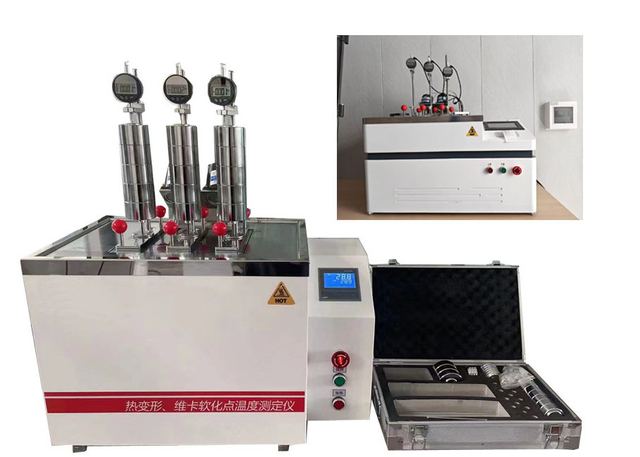

HDT VICAT Testing Machine for Plastic Thermal Deformation & Softening
Model XRW-300AT
Overview
HDT VICAT Testing Machine for Plastic Thermal Deformation & Softening supplied by Beijing Jinshengxin Testing Machine Co., Ltd. Key published specifications: Certification ISO9001, CE; Mainframe Type Table Type; Heating Rate 120℃/h 、 50℃/h; Deformation Measurement Range -1.00～10.00mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ISO9001, CE |
|---|---|
| Mainframe Type | Table Type |
| Heating Rate | 120℃/h 、 50℃/h |
| Deformation Measurement Range | -1.00～10.00mm |
| Span Of Sample Supports | 64mm, 100mm |
| Maximum Deformation Measurement Error | 0.01mm |
| Current Source | 3000VA 220VAC 50HZ |
| Temperature control range | Room temperature ～300℃ |
| Test station | 2,3,4,6 Optional |
| Formal measurement measuring tool | Digital display dial gauge |
| Heating medium | Methylsilicone oil |
| Controll | By PLC |
| Heating Rate B | 120℃/h |
