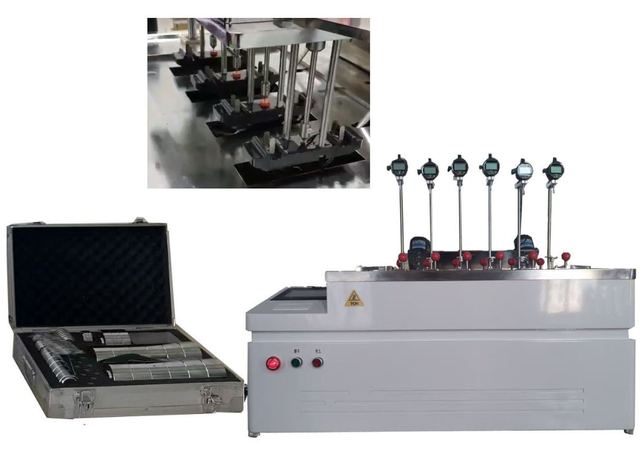

HDT VICAT Testing Machine for Plastic Thermal Deformation & Softening
Overview
HDT VICAT Testing Machine for Plastic Thermal Deformation & Softening supplied by Beijing Jinshengxin Testing Machine Co., Ltd. Key published specifications: Certification ISO9001, CE; Product Category HDT VICAT Testing Machine; Current Source 4KW, 220VAC, 50HZ; Deformation Measurement Range -1.00～10.00mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ISO9001, CE |
|---|---|
| Product Category | HDT VICAT Testing Machine |
| Current Source | 4KW, 220VAC, 50HZ |
| Deformation Measurement Range | -1.00～10.00mm |
| Maximum Deformation Measurement Error | 0.01mm |
| Model | XRW-300BT-Ⅵ |
| Temperature control range | Room temperature ~300℃ |
| Heating rate | 50℃/h, 120℃/h, or set between 50-120℃/h |
| Range of deformation measurement | -0.1~10mm |
| Maximum deformation error | ±0.005mm |
| Deformation resolution | 0.001mm |
| Sample supports span | 64mm, 100mm |
| Load bar and press (needle) weight | 74g |
| Voltage and power | 220V, 6KW |
| Working medium | Methylsilicone oil or transformer oil |
| Mainframe type | Table type |
| Controll | By PLC |
| Heating Rate B | 120℃/h |
