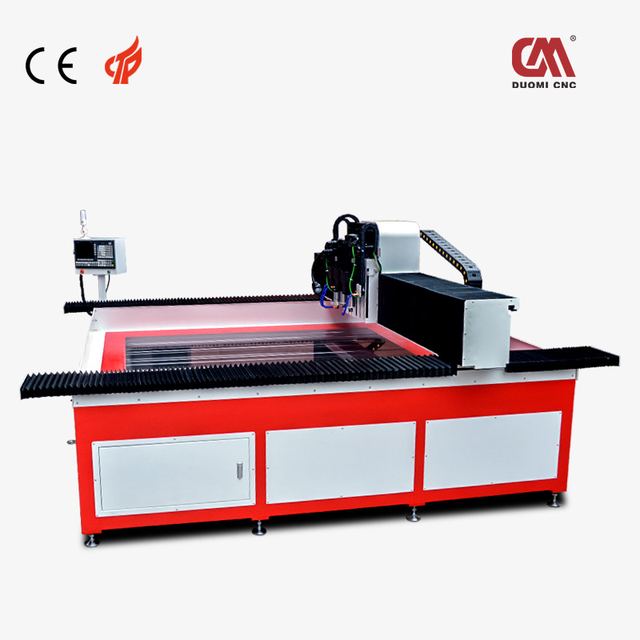

Gantry plate drilling machine
Model DNC-2015DDT
Overview
Gantry plate drilling machine, listed under Drilling Equipment by Duomi (Guangdong) Intelligent Equipment Co., Ltd in Dongguan, Guangdong. Published figures include machine type DNC-2015DDT, xyz three-axis machining stroke0 X2000mm Y1500mm Z200mm and spindle taper hole ER20.
Technical specifications
| Machine type | DNC-2015DDT |
|---|---|
| XYZ three-axis machining stroke0 | X2000mm Y1500mm Z200mm |
| Spindle taper hole | ER20 |
| Spindle power | 0.55~3.0KW |
| X axis moving speed | 30m/min~60m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Borehole diameter range | 1~20mm |
| Chamfer diameter range | 1~20mm |
| Tool magazine | Manual tool change |
| Repeated positioning accuracy | 0.02mm |
| Table size | 2000*1500mm |
| Programming mode | CAD file import/computer programming/manual programming |
| System program storage capacity | About 10,000 |
| System external signal control | support |
| Operating voltage | AC 220V/50HZ |
| Machine weight | Approx. 1000KG |
| Floor space | 2600*1900*1700mm |
| Hole Size Range | M2 – M16. |
| Positioning Accuracy | ±0.01mm. |
