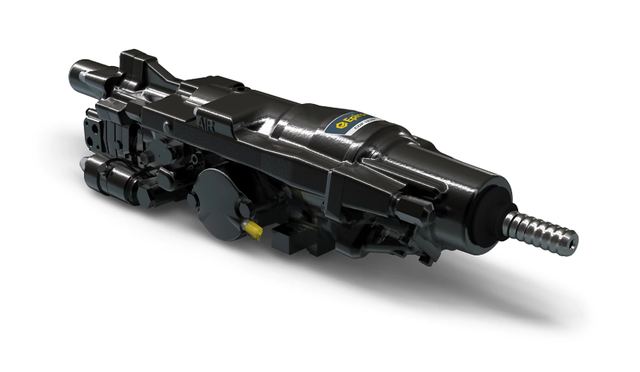

Rock Drill COP 1838+
Overview
Shaanxi Xianfeng Rock Drilling Machinery Equipment Co., Ltd in Shaanxi lists Rock Drill COP 1838+ under Drilling Equipment. Weight 170 kg, length without shank adapter 1008 mm and width including connectors 251 mm are among the specifications published.
Technical specifications
| Weight | 170 kg |
|---|---|
| Length without shank adapter | 1008 mm |
| Width including connectors | 251 mm |
| Height | 223 mm |
| Height over drill center | 88 mm |
| Impact power (maximum) | 18 kW |
| Input power to rock drill (maximum) | 31 kW |
| Hydraulic pressure (maximum) | 230 bar |
| Flow rate | 75 - 92 l/min |
| Impact frequency | 60 Hz |
