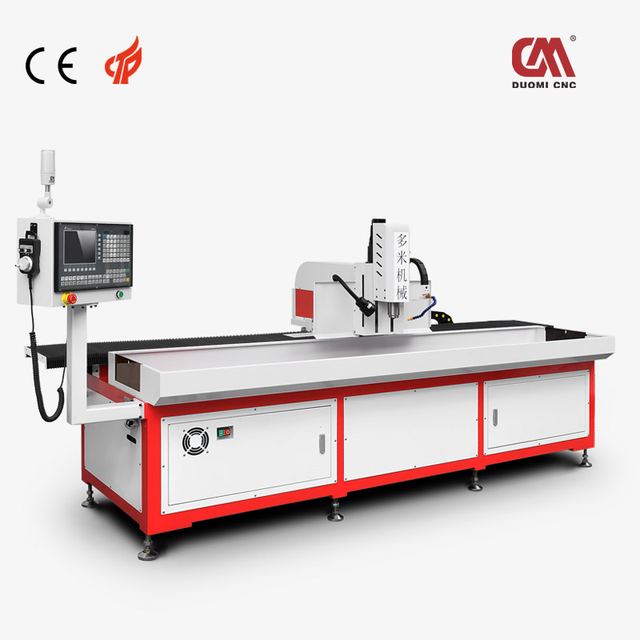

High-speed 3 axis drilling machine
Model DNC-1030HD
Overview
High-speed 3 axis drilling machine, listed under Drilling Equipment by Duomi (Guangdong) Intelligent Equipment Co., Ltd in Dongguan, Guangdong. Machine type DNC-1030HD, xyz three-axis machining stroke0 X1000mm Y300mm Z200mm and spindle taper hole Collet reducer sleeve are among the specifications published.
Technical specifications
| Machine type | DNC-1030HD |
|---|---|
| XYZ three-axis machining stroke0 | X1000mm Y300mm Z200mm |
| Spindle taper hole | Collet reducer sleeve |
| Spindle power | 0.55~3.0KW |
| X axis moving speed | 30m/min~60m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Borehole diameter range | 0.15~4.0mm |
| Tool magazine | Pneumatic press knife change |
| Repeated positioning accuracy | ±0.01mm |
| Table size | 1000*280mm |
| Programming mode | CAD file import/computer programming/manual programming |
| System program storage capacity | About 10,000 |
| System external signal control | support |
| Operating voltage | AC 220V/50HZ |
| Machine weight | Approx. 1000KG |
| Floor space | 2500*1500*1700mm |
| Precision at Every Angle | 3 Axis Drilling Machine |
| Hole Size Range | 0.15mm – 4mm. |
| Positioning Accuracy | ±0.01mm. |
