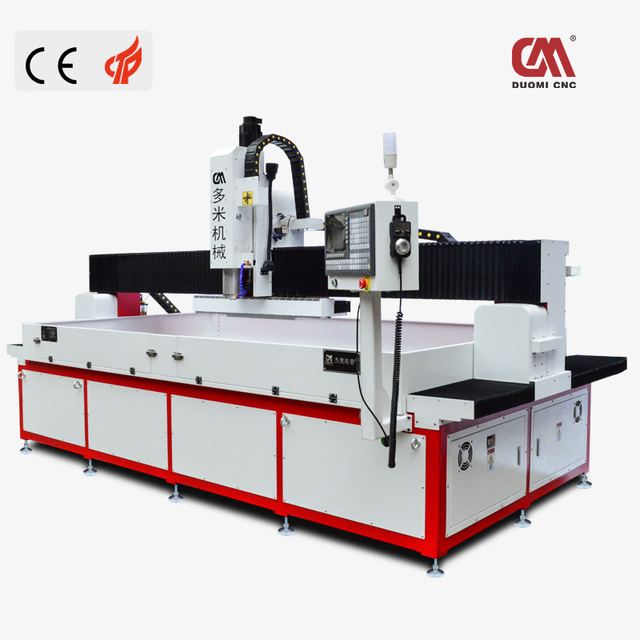

Gantry drilling machine
Model DNC-3016N10
Overview
Gantry drilling machine supplied by Duomi (Guangdong) Intelligent Equipment Co., Ltd. Listed under Drilling Equipment. Key published specifications: Machine type DNC-27100N10; XYZ three-axis machining stroke0 X2700mm Y1000mm Z200mm; Spindle taper hole BT30; Spindle power 5.5KW. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Machine type | DNC-27100N10 |
|---|---|
| XYZ three-axis machining stroke0 | X2700mm Y1000mm Z200mm |
| Spindle taper hole | BT30 |
| Spindle power | 5.5KW |
| X axis moving speed | 30m/min~60m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Borehole diameter range | 1~20mm |
| Tapping diameter range | M3~M18 |
| Chamfer range | 1~20mm |
| Tool magazine | Servo automatic tool change (10 tools) |
| Repeated positioning accuracy | ±0.01mm |
| Table size | 2700*1000mm |
| Programming mode | CAD file import/computer programming/manual programming |
| System program storage capacity | About 10,000 |
| System external signal control | support |
| Operating voltage | AC 380V/50HZ |
| Machine weight | Approx. 3600KG |
| Floor space | 4600*2500*1700mm |
| Hole Size Range | M3 – M18. |
| Positioning Accuracy | ±0.01mm. |
| High-Precision Drilling | ±0.01 mm repeatability even under heavy loads |
| Perfect for | Steel machinery parts drilling |
