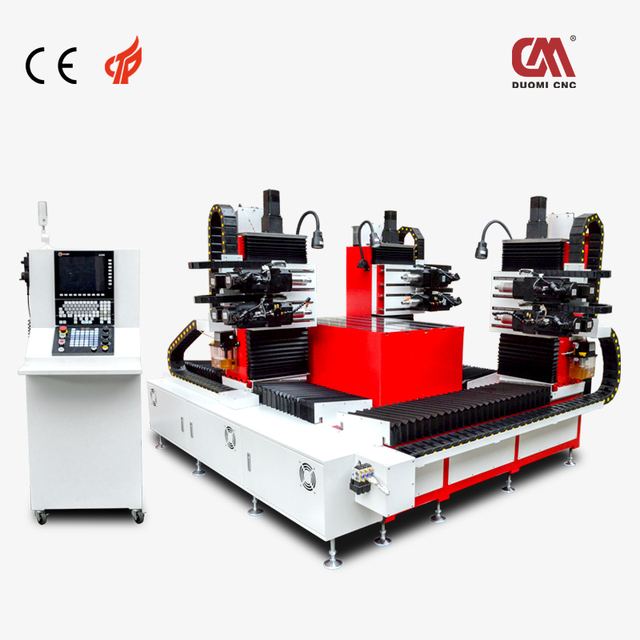

Multi drilling machine
Overview
Multi drilling machine supplied by Duomi (Guangdong) Intelligent Equipment Co., Ltd. Listed under Drilling Equipment. Key published specifications: Machine type DNC-1080DT(6); XYZ three-axis machining stroke1 X1000mm Y200mm Z200mm; XYZ three-axis machining stroke2 X1000mm Y200mm Z200mm; XYZ three-axis machining stroke3 X800mm Y200mm Z300mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Machine type | DNC-1080DT(6) |
|---|---|
| XYZ three-axis machining stroke1 | X1000mm Y200mm Z200mm |
| XYZ three-axis machining stroke2 | X1000mm Y200mm Z200mm |
| XYZ three-axis machining stroke3 | X800mm Y200mm Z300mm |
| Spindle taper hole | ER20 |
| Spindle power | 0.55~3.0KW |
| X axis moving speed | 30m/min~60m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Borehole diameter range | 1~8mm |
| Tapping range | M3~M8 |
| chamfer range | 1~20mm |
| Tool magazine | Manual tool change |
| Repeated positioning accuracy | ±0.01mm |
| Programming mode | CAD file import/computer programming/manual programming |
| System program storage capacity | About 10,000 |
| System external signal control | support |
| Operating voltage | AC 380V/50HZ |
| Machine weight | Approx. 3500KG |
| Floor space | 2700*2400*2500mm |
| Model | DNC-1080DT(6) |
| Spindle speed | 500-2500 rpm. |
| Drilling diameter range | M3~M8mm. |
