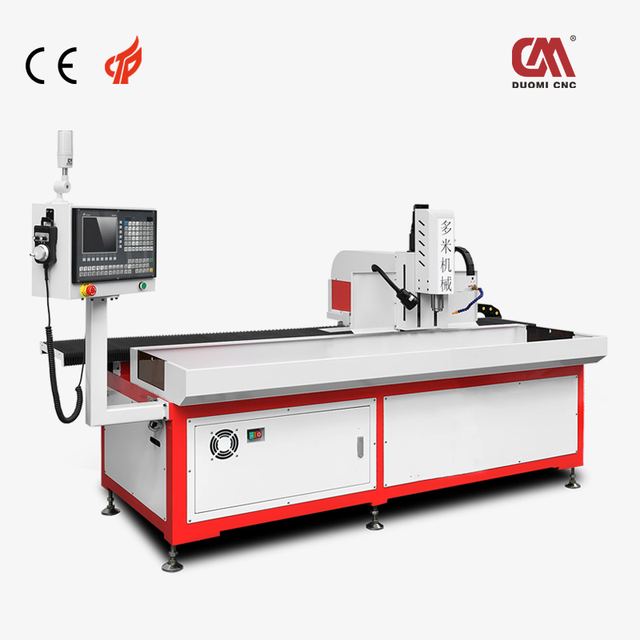

CNC Drilling Machine Prices in Different Countries Around the World
Model DNC-1030HD
Overview
CNC Drilling Machine Prices in Different Countries Around the World supplied by Duomi (Guangdong) Intelligent Equipment Co., Ltd. Listed under Drilling Equipment. Key published specifications: Machine type DNC-1030HD; XYZ three-axis machining stroke0 X1000mm Y300mm Z200mm; Spindle taper hole Collet reducer sleeve; Spindle power 0.55~3.0KW. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Machine type | DNC-1030HD |
|---|---|
| XYZ three-axis machining stroke0 | X1000mm Y300mm Z200mm |
| Spindle taper hole | Collet reducer sleeve |
| Spindle power | 0.55~3.0KW |
| X axis moving speed | 30m/min~60m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Borehole diameter range | 0.15~4.0mm |
| Tool magazine | Pneumatic press knife change |
| Repeated positioning accuracy | ±0.01mm |
| Table size | 1000*280mm |
| Programming mode | CAD file import/computer programming/manual programming |
| System program storage capacity | About 10,000 |
| System external signal control | support |
| Operating voltage | AC 220V/50HZ |
| Machine weight | Approx. 1000KG |
| Floor space | 2500*1500*1700mm |
| Spindle speed | 1000-60000 rpm. |
| Drilling diameter range | 0.15 ~ 4mm. |
