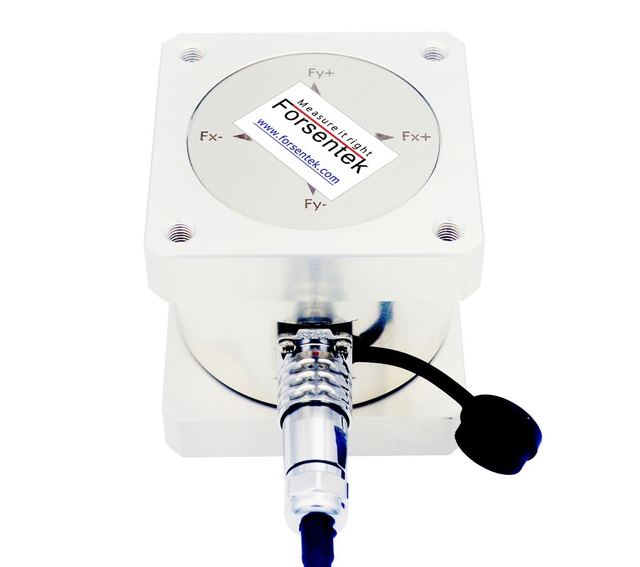

Flange-to-Flange Multi-Axis Load Cell 0-11kN Triaxial Force Sensor
Model F3Y
Overview
Flange-to-Flange Multi-Axis Load Cell 0-11kN Triaxial Force Sensor supplied by Forsentek Co. Limited. Key published specifications: Output Analog; Connection Flange To Flange; Type 3D Load Cell; Rated Capacity Fx-Fy-Fz 0.5kN-0.5kN-1.5kN 1kN-1kN-3kN 2kN-2kN-5kN 3kN-3kN-8kN 4kN-4kN-11kN. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Output | Analog |
|---|---|
| Connection | Flange To Flange |
| Type | 3D Load Cell |
| Rated Capacity | Fx-Fy-Fz 0.5kN-0.5kN-1.5kN 1kN-1kN-3kN 2kN-2kN-5kN 3kN-3kN-8kN 4kN-4kN-11kN |
| Sensitivity | Fx/Fy: 1.8 ±0.2 mV/V Fz: 1.0 ±0.2 mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.05mV/V |
| Non-linearity | ±0.3% R.O. |
| Hysteresis | ±0.3% R.O. |
| Non-repeatability | ±0.1% R.O. |
| Creep(3min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | 0...+40 o C |
| Operating temperature | -10...+60 o C |
| Temperature shift on zero | ±0.02% R.O./ o C |
| Temperature shift on span | ±0.03% R.O./ o C |
| Input resistance | 158±10 ohms |
| Output resistance | Fx/Fy: 380±30 ohms Fz: 1400±50 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP50 |
| Material of element | Aluminum or Stainless steel |
