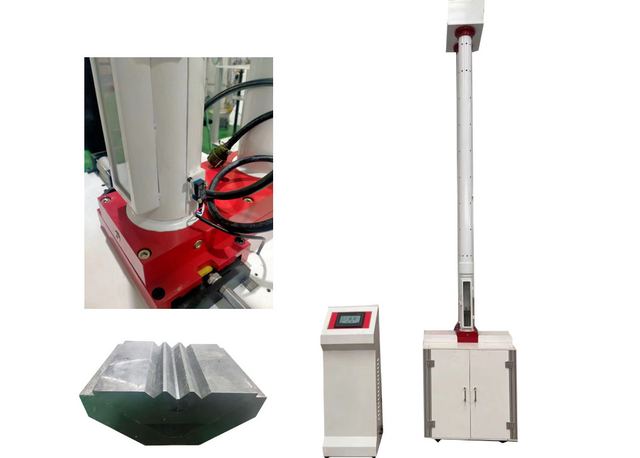

Drop Hammer Impact Tester for Material Safety Testing (0-300J)
Model XJL-300D
Overview
Drop Hammer Impact Tester for Material Safety Testing (0-300J) supplied by Beijing Jinshengxin Testing Machine Co., Ltd. Key published specifications: Certification ISO9001, CE; Hammer Diameter D25mm,D90mm, Etc; Test Range 0-300J; Drop Hammer Quality 0.5kg-12.5kg. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ISO9001, CE |
|---|---|
| Hammer Diameter | D25mm,D90mm, Etc |
| Test Range | 0-300J |
| Drop Hammer Quality | 0.5kg-12.5kg |
| Max. Height | 2000mm |
| Min. Height | 10mm |
| Power Supply | AC220V/50Hz |
| Model | XJL-300D |
| Height of the Fall | 10mm-2000mm, error≤±2mm |
| Diameter of the Sample | Φ16mm-Φ630mm |
| Deviation of Impact Center | ≤2mm |
| Power Source | 220VAC±10% |
| Outline Dimension | 720mm×710mm×3950mm |
| Net Weight | 385kg |
| Travel of Working Table | 0-630mm |
| Specimen Diameter | φ10~630mm |
| Test Type | Drop Hammer Test |
