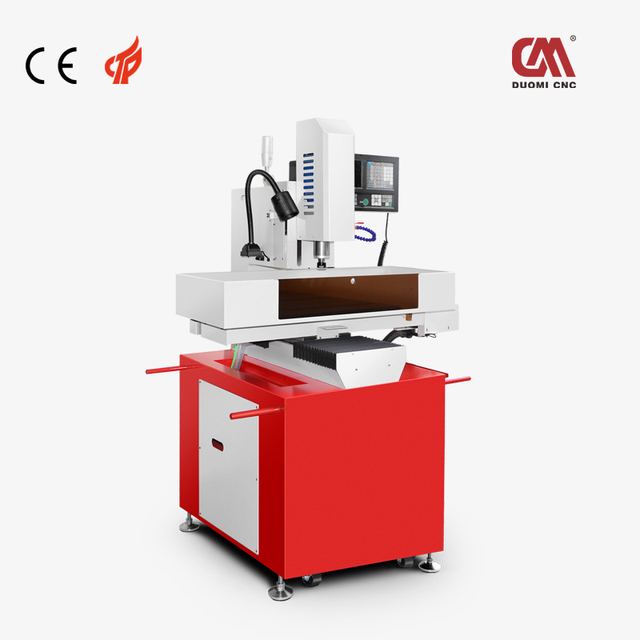

Drilling Small Holes in Metal with DUOMI CNC Precision
Model DNC-630D
Overview
Drilling Small Holes in Metal with DUOMI CNC Precision, listed by Duomi (Guangdong) Intelligent Equipment Co., Ltd in Dongguan, Guangdong. The listing gives machine type DNC-630D, xyz three-axis machining stroke0 X600mm Y300mm Z120mm and spindle taper hole ER20.
Technical specifications
| Machine type | DNC-630D |
|---|---|
| XYZ three-axis machining stroke0 | X600mm Y300mm Z120mm |
| Spindle taper hole | ER20 |
| Spindle power | 0.55~3.0KW |
| X axis moving speed | 30m/min~60m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Borehole diameter range | 1~14mm |
| Chamfer diameter range | 1~14mm |
| Tool magazine | Manual tool change |
| Repeated positioning accuracy | ±0.01mm |
| Table size | 600*280mm |
| Programming mode | CAD file import/computer programming/manual programming |
| System program storage capacity | About 10,000 |
| System external signal control | support |
| Operating voltage | AC 220V/50HZ |
| Machine weight | Approx. 550KG |
| Floor space | 1000*1000*1700mm |
| Hole Diameter Range | 0.03mm – 3mm. |
| Positioning Accuracy | ±0.01mm. |
| Material Thickness | 0.5mm – 20mm. |
| Applications Include | Electronic connectors and terminals |
