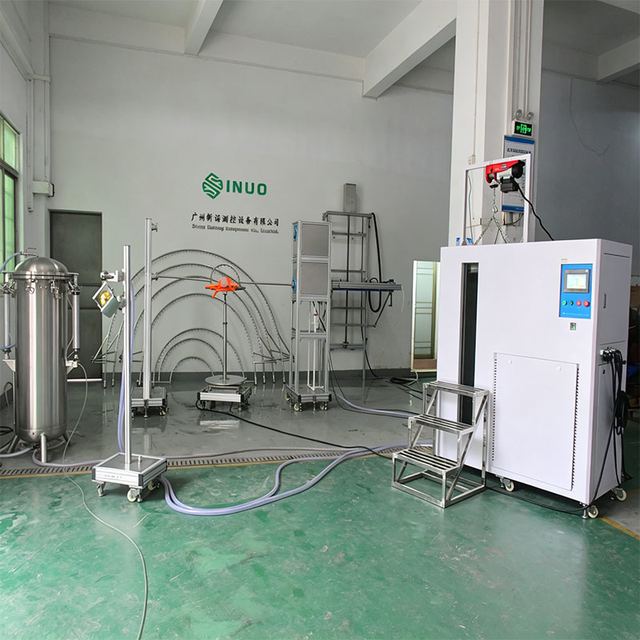

Complete IPX1-IPX8 Waterproof Testing System for IEC 60529 Compliance
Overview
Complete IPX1-IPX8 Waterproof Testing System for IEC 60529 Compliance supplied by Sinuo Testing Equipment Co. , Limited. Key published specifications: No. Component Name; IP Code Specifications; Accessory φ600mm, 150kg bearing capacity; Application IPX1, IPX2 testing. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| No. | Component Name |
|---|---|
| IP Code | Specifications |
| Accessory | φ600mm, 150kg bearing capacity |
| Application | IPX1, IPX2 testing |
| Rain Area | 1000mm × 1000mm |
| Tank Material | Stainless steel |
| Dripping Aperture | ￠0.4mm |
| Hole Distance | 20mm |
| Rainfall Flow | 1mm/Min, 3mm/Min, user-set parameters (±0.5mm/min error) |
| Water Dripping Height | 200mm (automatically controlled) |
| Test Time | 10Min minimum (user configurable) |
| Body Material | Industrial aluminum alloy |
| Dimensions (L×D×H) | 1100×1200×2800mm |
| Water Supply | ＞10L/min±5% clean filtered water |
| Needle Hole | Φ0.4mm |
| Included Angle | IPX3: 120°; IPX4: 180° |
| Swing Angle | Maximum ±175° (presettable) |
| Swing Speed | IPX3: 4s/time (2×120°); IPX4: 12s/time (2×360°) |
| Water Flow | 0.07 L/min per hole (configurable) |
| Testing Time | 0.01S ~ 99 hours 59mins (presettable) |
| Pressure Gauge | 0~0.25MPa |
| Nozzle Diameter | External: Ф102mm; Spherical: SФ75.5mm |
| Hole Diameter | Ф0.5mm |
| Material | Brass |
| Baffle | Removable for IPX4 testing |
| Turntable Diameter | Ø600mm |
| Turntable Speed | 1rpm |
| Tiltable Angle | 0° and 15° positions |
