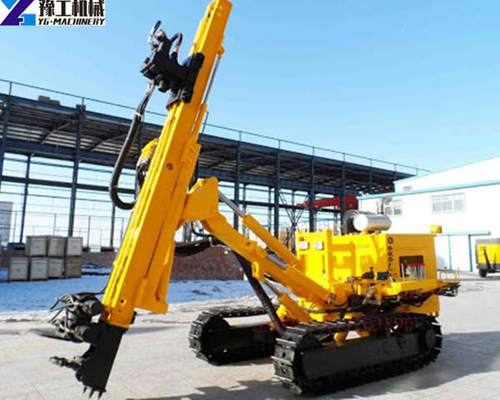

Anchor Drilling Machine
Overview
Anchor Drilling Machine supplied by YG Drill Equipment. Listed under Drilling Rigs. Key published specifications: Drilling Depth 10~60m; output maximum torque 2400N·m; Maximum stroke 1800mm; Maximum lifting force 25kN. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Drilling Depth | 10~60m |
|---|---|
| output maximum torque | 2400N·m |
| Maximum stroke | 1800mm |
| Maximum lifting force | 25kN |
| Maximum feed force | 20kN |
| Power | 7.5KW |
| Hydraulic station | 355kg |
| Control console | 145kg |
| Powerhead | 235kg |
| Hydraulic station(mm) | L640×W600×H580 |
