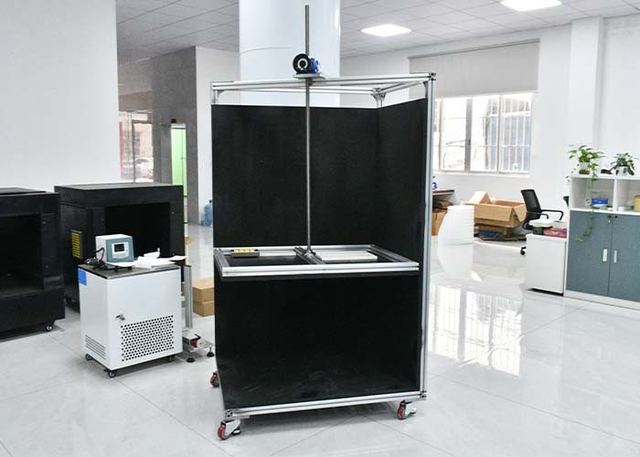

Adjustable Temperature Rise Test Corner with 48-Point K-Thermocouple Grid IEC 60065
Model SN1102-2
Overview
Adjustable Temperature Rise Test Corner with 48-Point K-Thermocouple Grid IEC 60065 supplied by Sinuo Testing Equipment Co. , Limited. Key published specifications: Number of Test Points 48 points (12 per panel); Measuring Point Layout 100 × 100 mm grid; Thermocouple Type K-Type, diameter < 0.3 mm; Copper Sheet Size Ø15 mm, thickness 1 mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Number of Test Points | 48 points (12 per panel) |
|---|---|
| Measuring Point Layout | 100 × 100 mm grid |
| Thermocouple Type | K-Type, diameter < 0.3 mm |
| Copper Sheet Size | Ø15 mm, thickness 1 mm |
| Plywood Thickness | 20 mm (Berlin black front, gray back) |
| Top Panel Height Range | Adjustable: 200 mm to 1500 mm |
| Mobility | 4 removable wheels at base |
| Inner Size | 1000 × 700 × 1500 Mm |
| 48 Temperature Measurement Points | Pre-arranged at 100×100 mm intervals |
