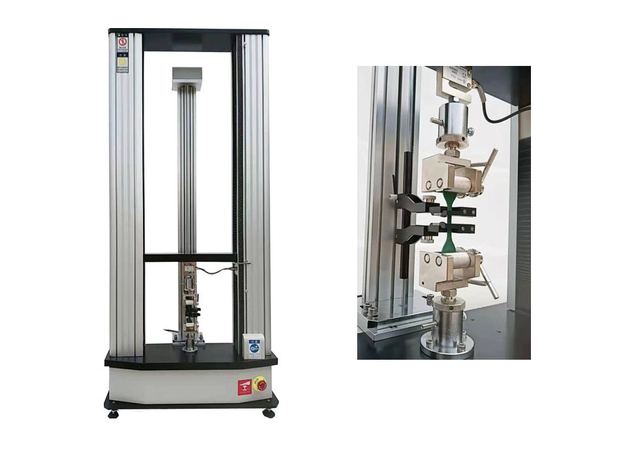

10KN Electronic Universal Testing Machine for Tensile & Elongation
Model XWW-10KN
Overview
10KN Electronic Universal Testing Machine for Tensile & Elongation supplied by Beijing Jinshengxin Testing Machine Co., Ltd. Key published specifications: Certification ISO9001, CE; Customized Support OEM, ODM, OBM; Capacity 10KN; Model XWW-10KN. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ISO9001, CE |
|---|---|
| Customized Support | OEM, ODM, OBM |
| Capacity | 10KN |
| Model | XWW-10KN |
| Application | PVC, PE, ABS, PP, Etc |
| Certificate | ISO, CE |
| Type | Double column model |
| Accuracy Grade | Class 1 (Class 0.5 optional) |
| Force-measuring Range | 1%~100%FS (0.4%~100%FS optional) |
| Deformation-measuring Range | 2%~100%FS |
| Crossbeam Displacement Resolution | 0.001mm |
| Crossbeam Speed Range | 0.05~500mm/min |
| Test Width | 380mm |
| Tensile Space | 700mm |
| Compression Space | 1000mm |
| Clamps | Tensile, compression, bending fixture |
| PC System | Equipped with brand computer |
| Power Supply | AC 220V±10%, 50Hz (customizable) |
| Host Size | 700×400×2000mm |
| Control mode | Cumputer |
| Max. Force | 20KN |
| Standard | ISO7500-1, ISO5893,ISO9969, ASTMD638\695\790 |
