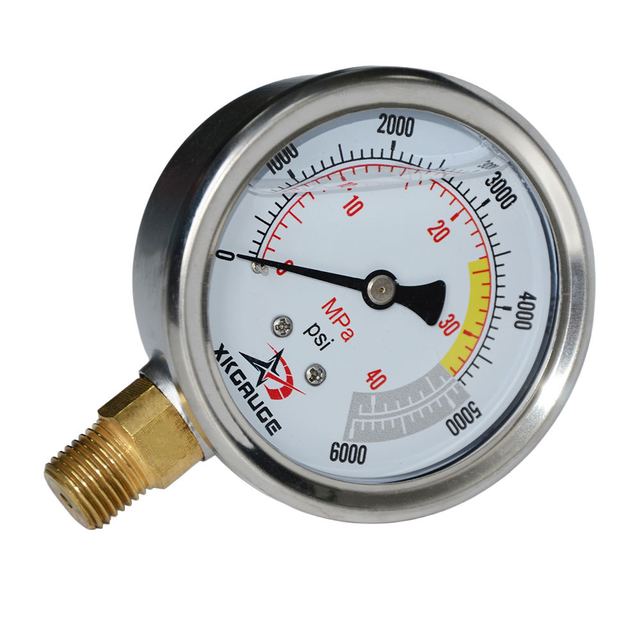

YN63 Glycerin Filled Pressure Gauge 400-6000 PSI Shockproof for Industrial Hydraulic Monitoring
Model YN63CX-Z
Overview
YN63 Glycerin Filled Pressure Gauge 400-6000 PSI Shockproof for Industrial Hydraulic Monitoring supplied by Anhui Xingkong Instrument Co., Ltd. Key published specifications: Certification CE, ISO; Model YN63CX-Z; Dial Size 63 mm; Case Material 304 Stainless Steel. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE, ISO |
|---|---|
| Model | YN63CX-Z |
| Dial Size | 63 mm |
| Case Material | 304 Stainless Steel |
| Wetted Parts | Stainless Steel (304/316 optional) |
| Fill Fluid | Silicone Oil / Glycerine |
| Measuring Element | Bourdon Tube |
| Mounting Type | Bottom / Back connection optional |
| Protection Level | IP65 (liquid filled type) |
| Connection Thread | G1/4, NPT, BSP optional |
| Dial Diameter | 63mm |
| Material | 304 Stainless Steel |
| Pressure Range | 0-60 Bar Customizable |
| Accuracy | Class 1.6 |
| Connection | G1/4 NPT BSP |
| Mounting | Bottom / Back |
| Protection | IP65 |
| Application | Hydraulic Pump Compressor Systems |
