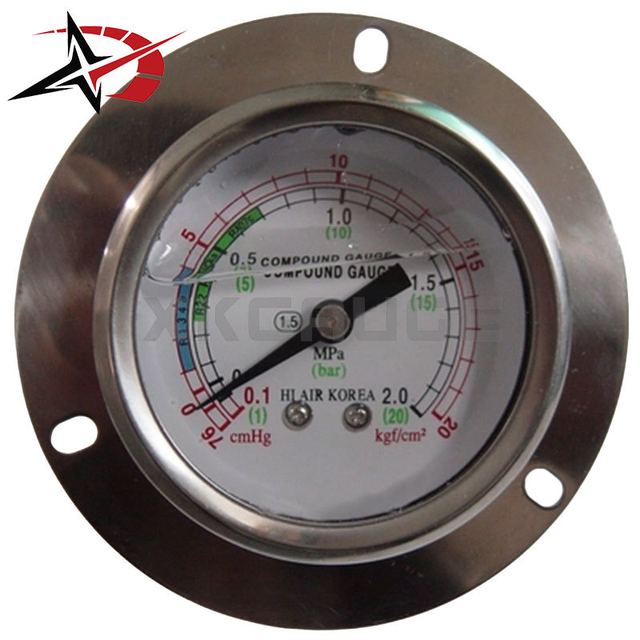

Flanged 60mm Glycerin Filled Pressure Gauge 2MPa Back Entry Stainless Steel for Industrial Process Monitoring
Model YN60ZT
Overview
Flanged 60mm Glycerin Filled Pressure Gauge 2MPa Back Entry Stainless Steel for Industrial Process Monitoring, listed by Anhui Xingkong Instrument Co., Ltd in Anhui. The listing gives certification CE, ISO, dial size 60 mm and pressure range 0–2 MPa (0–20 bar).
Technical specifications
| Certification | CE, ISO |
|---|---|
| Dial Size | 60 mm |
| Pressure Range | 0–2 MPa (0–20 bar) |
| Mounting Type | Flange Mount |
| Connection Type | Back Entry |
| Case Material | Stainless Steel |
| Filling Medium | Glycerin / Silicone Oil |
| Measurement System | Bourdon Tube |
| Accuracy | Class 1.6 |
| Thread Type | G1/4, NPT (Optional) |
| Application Medium | Air, Water, Oil, Non-corrosive fluids |
| Fill Medium | Glycerin |
| Connection | G1/4 |
| Mounting | Flanged Back Entry Panel |
| Standard | EN 837-1 |
