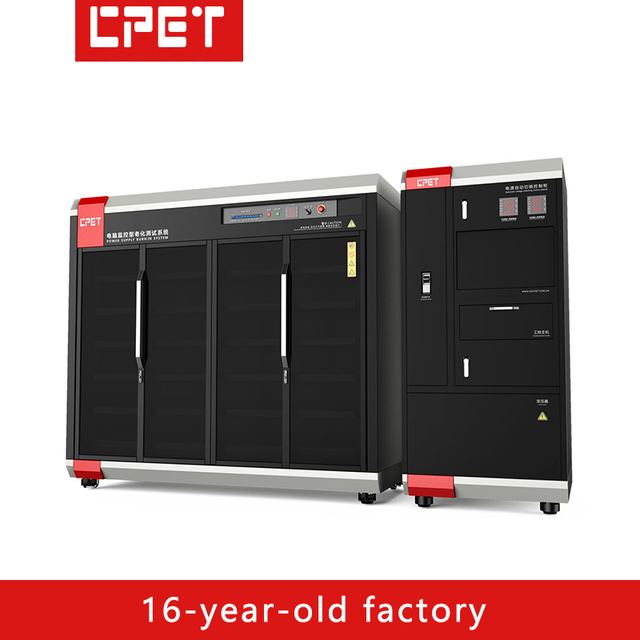

Energy Saving Inverter Aging Test Equipment with 85% Conversion Efficiency and Computer Monitoring
Model CP-NB3001
Overview
Energy Saving Inverter Aging Test Equipment with 85% Conversion Efficiency and Computer Monitoring supplied by Shenzhen CPET Electronics Co., Ltd. Key published specifications: Total Input Power 96kW*2; Total Input Current 150A*2; Powersupplyfrequency 50Hz / 60Hz; Function Testing And Aging Of Inverters. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Total Input Power | 96kW*2 |
|---|---|
| Total Input Current | 150A*2 |
| Powersupplyfrequency | 50Hz / 60Hz |
| Function | Testing And Aging Of Inverters |
| Outputpowercapacity | Up To 10kW |
| Trolley Height | Cold Rolled Sheet |
| Productname | Inverter Aging Test Equipment |
| Trolley Size | L2050 * W1085 * H2050mm (single cabinet) |
| Trolley Structure Material | Thick cold rolled sheet |
| Control Mode | RS485 communication, upper computer uses RS232 |
| Module Model | CP8401 |
| Power Distribution | 380V three-phase five-wire; computer monitoring and automatic control |
| Certification | CE,ROHS |
