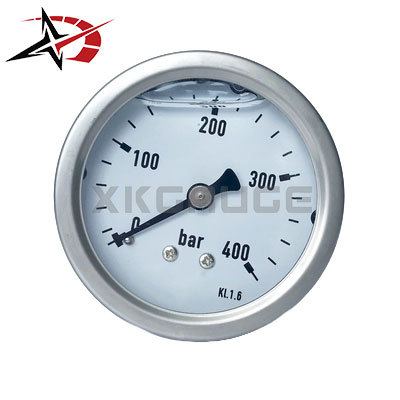

Shock Resistant 63mm Liquid Filled Pressure Gauge 0-400 Bar Axial Back Stainless for Hydraulic Monitoring
Model YN63
Overview
Shock Resistant 63mm Liquid Filled Pressure Gauge 0-400 Bar Axial Back Stainless for Hydraulic Monitoring supplied by Anhui Xingkong Instrument Co., Ltd. Key published specifications: Certification CE, ISO; Dial Size 63 mm; Pressure Range 0–400 bar; Mounting Type Axial. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE, ISO |
|---|---|
| Dial Size | 63 mm |
| Pressure Range | 0–400 bar |
| Mounting Type | Axial |
| Case Material | Stainless Steel |
| Filling Medium | Glycerin / Silicone Oil |
| Measurement System | Bourdon Tube |
| Connection Thread | G1/4, NPT (Optional) |
| Operating Temperature | -20°C to +60°C |
| Accuracy | Class 1.6 |
| Fill Medium | Glycerin |
| Connection | G1/4 |
| Mounting | Axial Back Connection |
| Standard | EN 837-1 |
