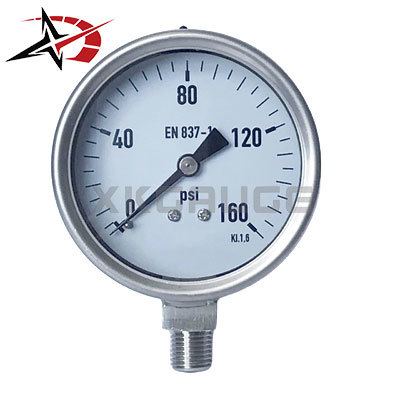

Hydraulic All Stainless Steel Liquid Filled Hydraulic Pressure Gauge Heavy Duty for High Pressure Monitoring
Model YN100
Overview
Hydraulic All Stainless Steel Liquid Filled Hydraulic Pressure Gauge Heavy Duty for High Pressure Monitoring supplied by Anhui Xingkong Instrument Co., Ltd. Key published specifications: Certification CE, ISO; Dial Size 40 mm; Pressure Range 0–5 bar; Accuracy KL1.6. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE, ISO |
|---|---|
| Dial Size | 40 mm |
| Pressure Range | 0–5 bar |
| Accuracy | KL1.6 |
| Type | Dry / Liquid Filled Optional |
| Filling Medium | Glycerin / Silicone Oil |
| Connection | Radial bottom mount |
| Standard | EN 837-1 |
| Measuring Element | Bourdon Tube |
| Case Material | Stainless Steel |
| Window | Glass / Safety Glass |
| Protection | IP54 / IP65 optional |
| Medium | Air, water, oil, non-corrosive gas |
| Material | 304 Stainless Steel |
| Diameter | 100mm |
| Fill Medium | Glycerin / Silicone Oil |
| Mounting | Radial Bottom |
| Dual Structure | Dry / Filled Type |
