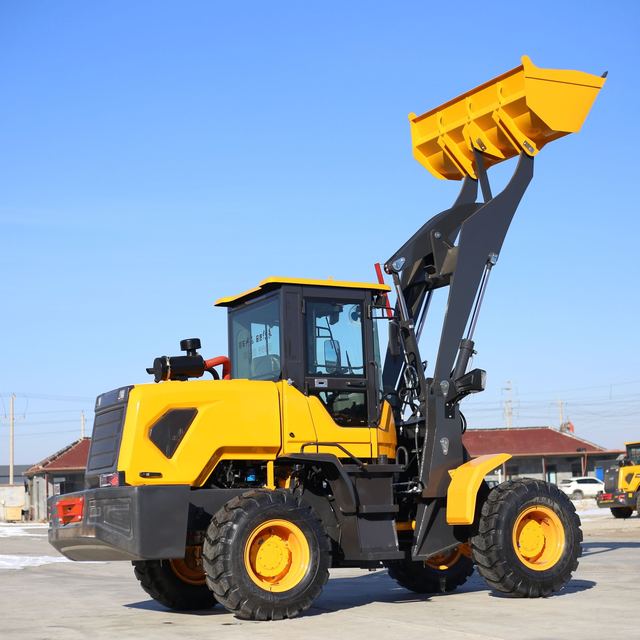

Wheel loader
Model GW940
Overview
Wheel loader supplied by SHANDONG GONGWO MACHINERY CO., LTD. Listed under Loaders. Key published specifications: Trademark Walker; whole vehicle Weight 4900 kg; Standard Bucket Capacity 0. 8-1.0 cbm; Rated load 2000 kg. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Trademark | Walker |
|---|---|
| whole vehicle Weight | 4900 kg |
| Standard Bucket Capacity | 0. 8-1.0 cbm |
| Rated load | 2000 kg |
| Bucket width | 1 3 00 mm |
| Engine | WEICHAI&YUNNEI-4102turbo |
| Engine power | 76 kw |
| lifting time | 4.6 s |
| falling time | 4.1 s |
| Overall dimension( LxWxH) | 5860*2000*2850mm |
| Wheelbase | 2500 mm |
| Wheel track | 1560 mm |
| Maximum unloading height | 3500 mm |
| Load and Unload Mode | front discharge |
| Drive Bridge Type | Wheel side reduction axle |
| Walking Mode | Wheeled |
| Service brake | Air hydraulic disc brake |
| parking brake | hand operated |
| Control Type | automatic transmission |
| Drive system | Torque converter hydraulic transmission |
