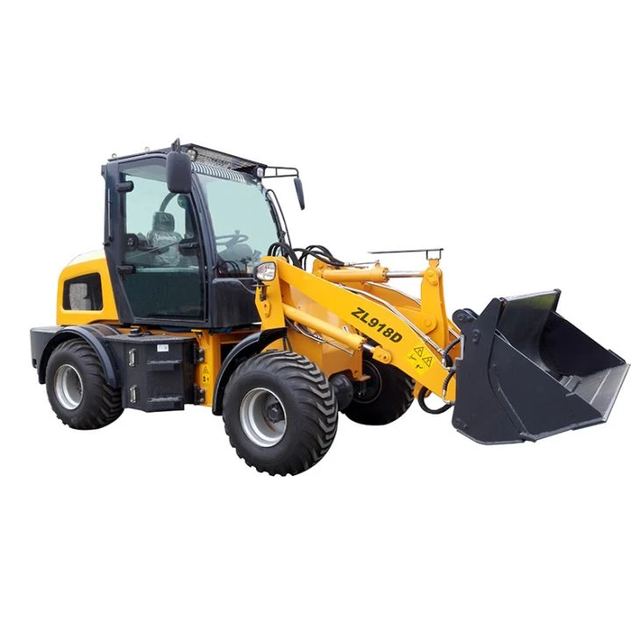

ZL918D Wheel Loader
Model ZL918D
Overview
ZL918D Wheel Loader supplied by Jining Haitui Heavy Industry Machinery Co.,Ltd. Listed under Loaders. Key published specifications: Operating Weight 4050 kg; Overall Dimensions L×W×H 5050×1780×2525 mm; Bucket Capacity 0.6 m³; Rated Load 1500 kg. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Operating Weight | 4050 kg |
|---|---|
| Overall Dimensions L×W×H | 5050×1780×2525 mm |
| Bucket Capacity | 0.6 m³ |
| Rated Load | 1500 kg |
| Max Speed | 25 km/h |
| Wheel Base | 2250 mm |
| Wheel Tread | 1410 mm |
| Engine Model | Xichai 4DW91-45 / Xinchai A498BT1 (Euro 3) |
| Rated Power | 37/2300 kw/rpm |
| Max Dumping Height | 2600 mm |
| Min Turning Radius | 4000 mm |
| Type of Transmission | Hydraulic Transmission box, F2+R2 |
| Brake Control | Air Over Hydraulic Disc Brake On 4 Wheels |
| Operating Control | Mechanical / Hydraulic Joystick |
