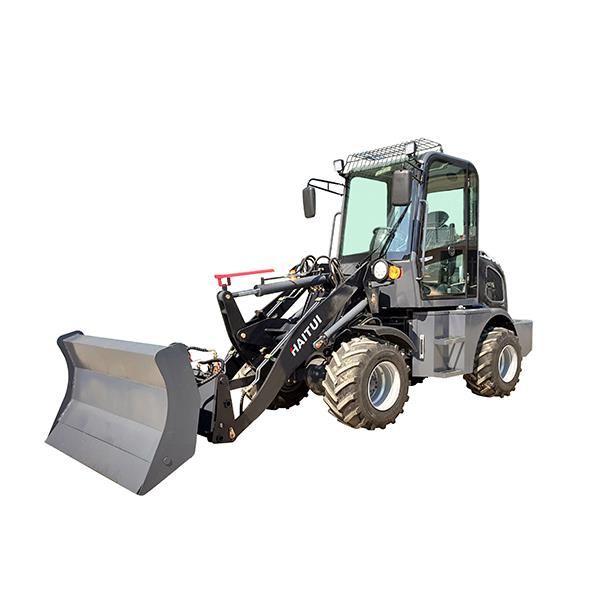

Mini Wheel Loader
Model ZL908
Overview
Mini Wheel Loader supplied by Jining Haitui Heavy Industry Machinery Co.,Ltd. Listed under Loaders. Key published specifications: Operating Weight 2700 kg; Overall Dimensions L×W×H 4200×1600×2650 mm; Bucket Capacity 0.4 m³; Rated Load 800 kg. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Operating Weight | 2700 kg |
|---|---|
| Overall Dimensions L×W×H | 4200×1600×2650 mm |
| Bucket Capacity | 0.4 m³ |
| Rated Load | 800 kg |
| Max Speed | 25 km/h |
| Wheel Base | 2100 mm |
| Wheel Tread | 1405 mm |
| Engine Model | Changchai 390 |
| Rated Power | 25 KW |
| Max Dumping Height | 2350 mm |
| Min Turning Radius | 3400 mm |
| Type of Transmission | Hydraulic Transmission box, F2+R2 |
| Brake Control | Air Over Hydraulic Disc Brake On 4 Wheels |
| Operating Control | Mechanical/Hydraulic Joystick |
