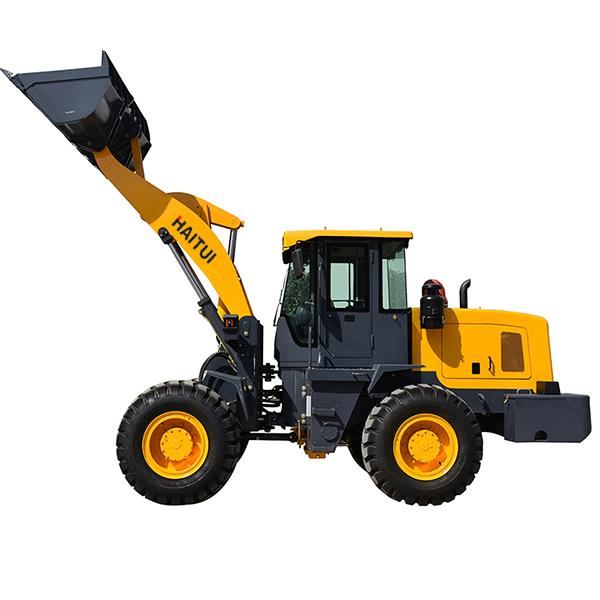

3 Ton Wheel Loader
Model ZL936
Overview
3 Ton Wheel Loader supplied by Jining Haitui Heavy Industry Machinery Co.,Ltd. Listed under Loaders. Key published specifications: Operating Weight 10000 kg; Overall Dimensions L×W×H 7290×2420×3220 mm; Bucket Capacity 1.8 m³; Rated Load 3000 kg. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Operating Weight | 10000 kg |
|---|---|
| Overall Dimensions L×W×H | 7290×2420×3220 mm |
| Bucket Capacity | 1.8 m³ |
| Rated Load | 3000 kg |
| Max Speed | 37 km/h |
| Wheel Base | 2750 mm |
| Wheel Tread | 1850 mm |
| Engine Model | Yuchai YC6J125Z-T20 / DEUTZ WP6G125E22 |
| Rated Power | 92 KW |
| Max Dumping Height | 2990 mm |
| Min Turning Radius | 5131 mm |
| Type of Transmission | Hydraulic Transmission box, F2+R2 |
| Brake Control | Air Over Hydraulic Disc Brake On 4 Wheels |
| Operating Control | Mechanical / Hydraulic Joystick |
