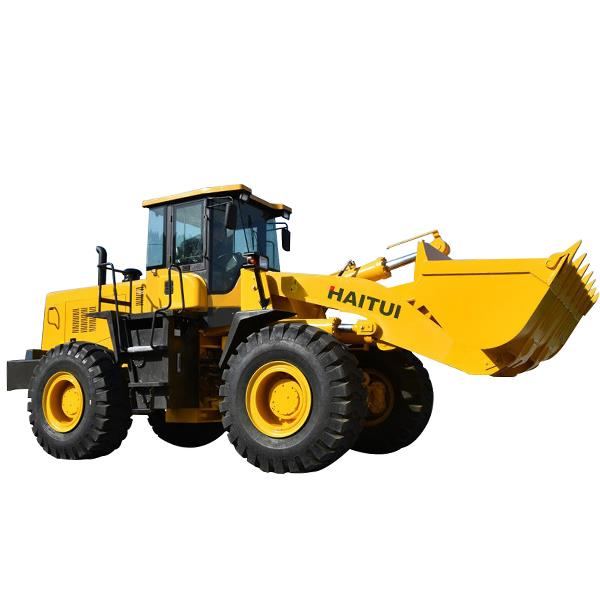

5 Ton Wheel Loader
Model ZL956
Overview
5 Ton Wheel Loader supplied by Jining Haitui Heavy Industry Machinery Co.,Ltd. Listed under Loaders. Key published specifications: Operating Weight 17100 kg; Overall Dimensions L×W×H 7920×3050×3400 mm; Bucket Capacity 3 m³; Rated Load 5000 kg. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Operating Weight | 17100 kg |
|---|---|
| Overall Dimensions L×W×H | 7920×3050×3400 mm |
| Bucket Capacity | 3 m³ |
| Rated Load | 5000 kg |
| Max Speed | 38 km/h |
| Wheel Base | 3200 mm |
| Wheel Tread | 2150 mm |
| Engine Model | Weichai Steyr / CUMMINS 6LT9.3 |
| Rated Power | 162 KW |
| Max Dumping Height | 3150 mm |
| Min Turning Radius | 6640 mm |
| Type of Transmission | Hydraulic Transmission box, F2+R2 |
| Brake Control | Air Over Hydraulic Disc Brake On 4 Wheels |
| Operating Control | Hydraulic Joystick |
