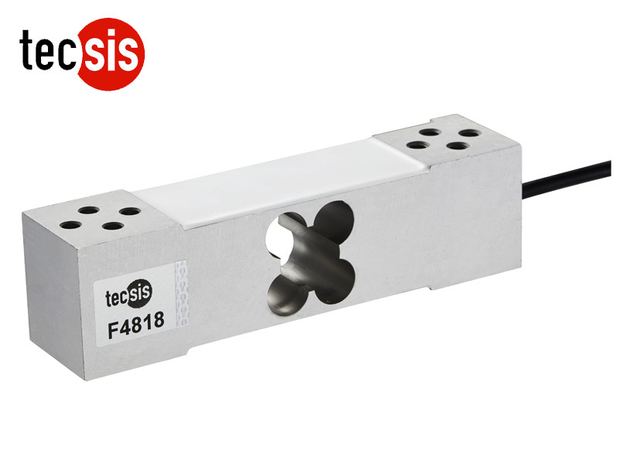

Weighing Sensor 20kg To 500kg Scale Load Cell Strain Gauge Waterproof
Model F4818
Overview
Weighing Sensor 20kg To 500kg Scale Load Cell Strain Gauge Waterproof supplied by Shenzhen) Sensors Co., Ltd. Key published specifications: Type Single Point Load Cell; Material Aluminum Alloy; Capacity 20kg~500kg; Oem/Odm Acceptable. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Type | Single Point Load Cell |
|---|---|
| Material | Aluminum Alloy |
| Capacity | 20kg~500kg |
| Oem/Odm | Acceptable |
| Protection Class | IP65 |
| Rated output | 2.0±10%mV/V |
| Zero balance | ±2% F.S. |
| Non-linearity | 0.02% F.S. |
| Hysteresis | 0.02% F.S. |
| Repeatability | 0.02% F.S. |
| Creep (30min) | 0.02% F.S. |
| Temp. effect on output | 0.025% F.S. / 10ºC |
| Temp. effect on zero | 0.025% F.S. / 10ºC |
| Insulation | ≥2000MΩ/ 100VDC |
| Recommended excitation | 10V |
| Maximum excitation | 15V |
| Compensated temp. range | - 10~40ºC |
| Operation temp. range | - 20~60ºC |
| Safe overload | 120% F.S. |
| Ultimate overload | 200% F.S. |
| Cable size | Ø5×1500 mm |
| Platform size | 450×450mm |
| Standard | carton |
| Model | F4818 |
| Technical parameters | Specifications |
| Input | Red(+) Black(-); |
