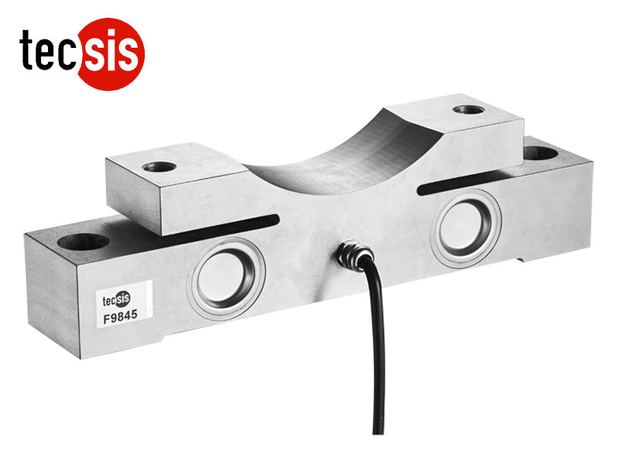

Compact Crane Strain Gauge Load Cell Sensors 10T
Model F9845
Overview
Compact Crane Strain Gauge Load Cell Sensors 10T supplied by Shenzhen) Sensors Co., Ltd. Key published specifications: Structure Compact; Material Stainless Steel; Capacity 10t~110t; Oem/Odm Acceptable. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Structure | Compact |
|---|---|
| Material | Stainless Steel |
| Capacity | 10t~110t |
| Oem/Odm | Acceptable |
| Rated output | 2.0±1% mV/V(10t~30t) 1.5±1% mV/V(40t~110t) |
| Zero balance | ±2% F.S. |
| Total error | ≤0.1% F.S.(10t~30t) ≤0.2% F.S.(40t~60t) ≤0.3% F.S.(80t~110t) |
| Temp. effect on output | 0.05% F.S. / 10ºC |
| Temp. effect on zero | 0.05% F.S. / 10ºC |
| Recommended excitation | 5~10VDC |
| Maximum excitation | 15VDC |
| Compensated temp. range | - 10~40ºC |
| Operation temp. range | - 20~80ºC |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Cable size | Ø5*10000 mm |
| Protection class | IP67 |
| Standard | carton |
| Model | F9845 |
| Technical parameters | Specifications |
| Input | Red(+) Black(-); |
| Output | Green(+) White(-); |
