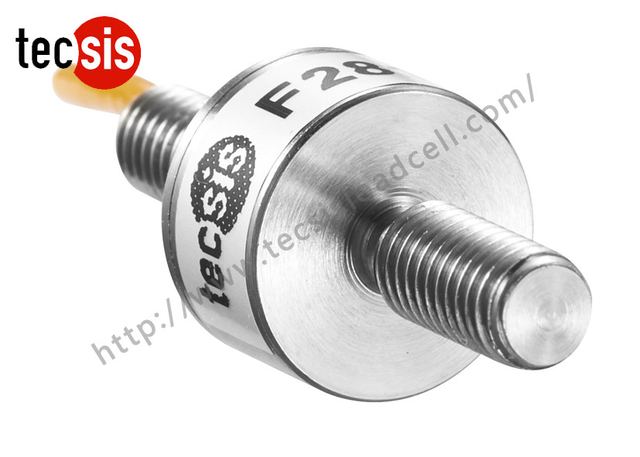

Industrial Tension Compression Load Cell
Model F2811
Overview
Industrial Tension Compression Load Cell supplied by Shenzhen) Sensors Co., Ltd. Key published specifications: Structure Compact; Material Stainless Steel; Capacity 10kg~500kg; Oem/Odm Acceptable. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Structure | Compact |
|---|---|
| Material | Stainless Steel |
| Capacity | 10kg~500kg |
| Oem/Odm | Acceptable |
| Rated output | 1.0±20%mV/V |
| Zero balance | ±5% F.S. |
| Non-linearity | 1% F.S. |
| Hysteresis | 0.5% F.S. |
| Repeatability | 0.5% F.S. |
| Creep (30min) | 0.1% F.S. |
| Temp. effect on output | 0.05% F.S. / 10ºC |
| Temp. effect on zero | 0.05% F.S. / 10ºC |
| Recommended excitation | 5~10V |
| Maximum excitation | 15V |
| Compensated temp. range | - 10~60ºC |
| Operation temp. range | - 20~80ºC |
| Safe overload | 120% F.S. |
| Ultimate overload | 200% F.S. |
| Cable size | 1500 mm |
| Protection class | IP66 |
| Standard | carton |
| Model | F2811 |
| Diameter | 13mm |
| Technical parameters | Specifications |
| Input | Red(+) Black(-); |
| Output | Green(+) White(-); |
