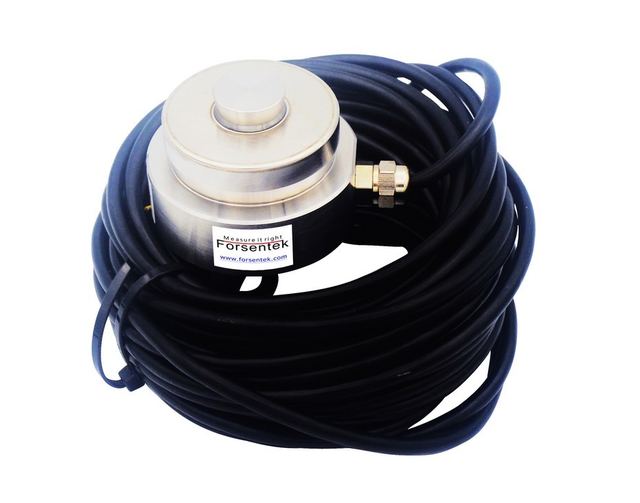

Compression Load Cell 500t 330t 220t 150t Ring Torsion Load Cell
Model FCRN
Overview
Compression Load Cell 500t 330t 220t 150t Ring Torsion Load Cell supplied by Forsentek Co. Limited. Key published specifications: Type Ring Torsion Load Cell; Force Range 0-500ton; Material Stainless Steel; Rated output 2.85mV/V. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Type | Ring Torsion Load Cell |
|---|---|
| Force Range | 0-500ton |
| Material | Stainless Steel |
| Rated output | 2.85mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Creep(3min) | ±0.05% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | 0...+40 o C |
| Operating temperature | -20...+65 o C |
| Temperature shift zero | ±0.05% R.O./10 o C |
| Temperature shift span | ±0.05% R.O./10 o C |
| Input resistance | 4450±200 ohms |
| Output resistance | 4000±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP67 |
| Material of element | Stainless steel |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
| Output | Analog |
