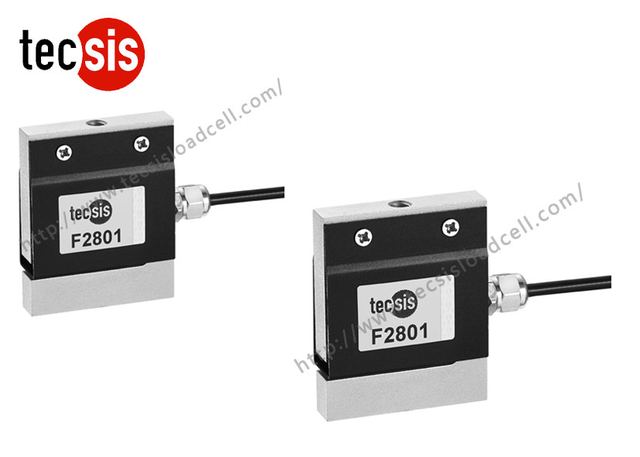

Miniature Tension Compression Load Cell
Model F2801
Overview
Shenzhen) Sensors Co., Ltd in Shenzhen, Guangdong lists Miniature Tension Compression Load Cell under Compression Load Cells. The listing gives application Measurement In Hopper Scale, material Aluminum Alloy and capacity 5~200kg.
Technical specifications
| Application | Measurement In Hopper Scale |
|---|---|
| Material | Aluminum Alloy |
| Capacity | 5~200kg |
| Oem/Odm | Acceptable |
| Protection Class | IP65 |
| Theory | Resistance Sensor |
| Rated output | 2.0±5%mV/V |
| Zero balance | ±2% F.S. |
| Non-linearity | 0.03% F.S. |
| Hysteresis | 0.03% F.S. |
| Repeatability | 0.02% F.S. |
| Creep (30min) | 0.03% F.S. |
| Temp. effect on output | 0.03% F.S. / 10ºC |
| Temp. effect on zero | 0.03% F.S. / 10ºC |
| Insulation | ≥5000MΩ/ 100VDC |
| Recommended excitation | 10V |
| Maximum excitation | 15V |
| Compensated temp. range | - 10~60ºC |
| Operation temp. range | - 20~80ºC |
| Safe overload | 120% F.S. |
| Ultimate overload | 150% F.S. |
| Cable size | 1500 mm |
| Standard | carton |
| Model | F2801 |
| Technical parameters | Specifications |
| Input | Red(+) Black(-); |
| Output | Green(+) White(-); |
