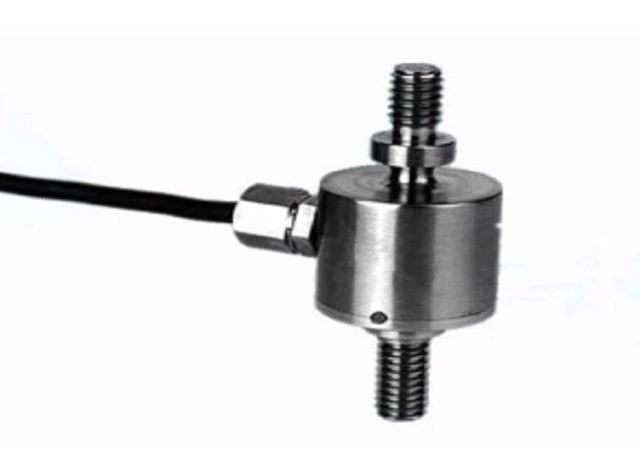

Stainless Steel Screw Tension And Compression Force Sencor mini Load Cell
Model HZFS-021
Overview
Stainless Steel Screw Tension And Compression Force Sencor mini Load Cell supplied by Innovation Electronic Co.,Ltd. Listed under Load Cells. Key published specifications: Material Stainless Steel; Capacity 5-50kg; Rated Output 1.0-1.5 mV/V; Zero Balance ±2%F.S.. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Material | Stainless Steel |
|---|---|
| Capacity | 5-50kg |
| Rated Output | 1.0-1.5 mV/V |
| Zero Balance | ±2%F.S. |
| Insulation | ≥5000MΩ/100VDC |
| Non-linearity | 1.0-5%F.S. |
| Recommended Excitation | 2.5-5V |
| Hysteresis | 1.0%F.S. |
| Maximum Excitation | 10V |
| Repeatability | 1.0%F.S. |
| Compensated Temp Range | -10~60ºC |
| (30)Creep (30min) | 0.1%F.S. |
| Operating Temp Range | -20~80ºC |
| Temp Effect on Output | 0.1%F.S./10ºC |
| Temp Effect on Zero | 0.1%F.S./10ºC |
| Cable Size | φ(2-3)x 3m |
| Rated Capacities(Emax) | 5~50kg |
| Type | Mini Load Cell |
| Application | Testing Instruments |
| output | 1.5-2.0mV/V |
