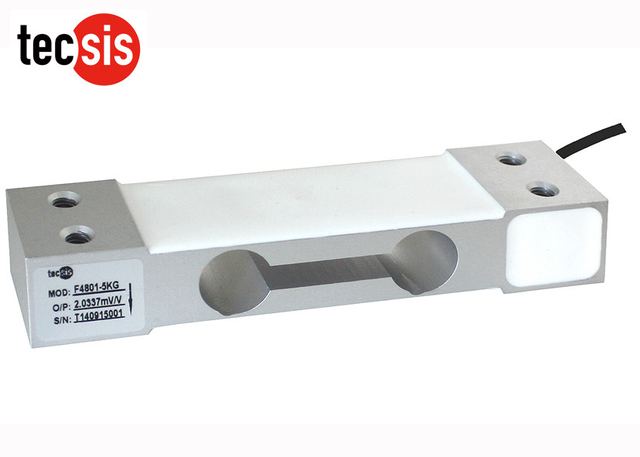

Single Point 3kg To 250kg Load Cell For Weighing Scale

Model F4801

Single Point 3kg To 250kg Load Cell For Weighing Scale

Overview

Single Point 3kg To 250kg Load Cell For Weighing Scale, listed under Parcel Weighing Scales by Shenzhen) Sensors Co., Ltd in Shenzhen, Guangdong. The listing gives type Single Point Load Cell, material Aluminum Alloy and capacity 3kg~250kg.

Technical specifications

TypeSingle Point Load Cell
MaterialAluminum Alloy
Capacity3kg~250kg
Oem/OdmAcceptable
Protection ClassIP65
Rated output2.0±10%mV/V
Zero balance±2% F.S.
Non-linearity0.02% F.S.
Hysteresis0.02% F.S.
Repeatability0.02% F.S.
Creep (30min)0.02% F.S.
Temp. effect on output0.02% F.S. / 10ºC
Temp. effect on zero0.02% F.S. / 10ºC
Insulation≥5000MΩ/ 100VDC
Recommended excitation10V
Maximum excitation15V
Compensated temp. range- 10~40ºC
Operation temp. range- 20~60ºC
Safe overload150% F.S.
Ultimate overload200% F.S.
Cable sizeØ3×450 mm
Standardcarton
ModelF4801
Technical parametersSpecifications
InputRed(+) Black(-);
OutputGreen(+) White(-);
