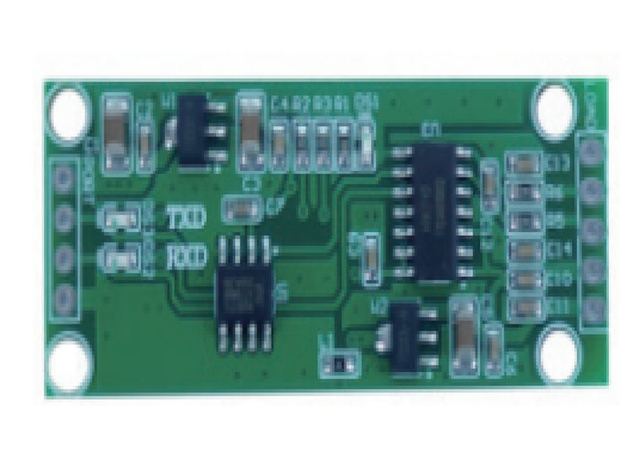

SJ101M Weight/force PCB main board Module TTL Or RS232 For Intelligent Electronic Scale 5-12V
Model SJ101M
Overview
SJ101M Weight/force PCB main board Module TTL Or RS232 For Intelligent Electronic Scale 5-12V, listed by Innovation Electronic Co.,Ltd. Application Intelligent Electronic Scale, communication frequency 1-33HZ and sample frequency 10-40HZ are among the specifications published.
Technical specifications
| Application | Intelligent Electronic Scale |
|---|---|
| Communication frequency | 1-33HZ |
| sample frequency | 10-40HZ |
| input voltage | 5-12V |
| TTL serial port voltage | 3.3V |
| Communication parameter | 9600n 81 |
| excitation voltage | 3.3V |
| Number of input sensors | 1-4 350R weighing or pressure sensors |
| Type | PCB Module |
| Signal | TTL Or RS232 |
| Power Supply | AC 220V / 50Hz Or 110V/60HZ |
| Display Type | LCD/LED |
| Accuracy | 2kg~5kg |
| Optional Power Supply | AC 220V / 50Hz Or 110V/60HZ |
| Material | Carbon Steel |
| Rated Load | 600kg |
| Power | AC/DC Rechargeable Battery |
| Weighing Capacity | 30kg 60kg 150kg 200kg 300kg 500kg 600kg |
| Load cell Capacity | 60kg 100kg 200kg 300kg 500kg 800kg 800kg |
