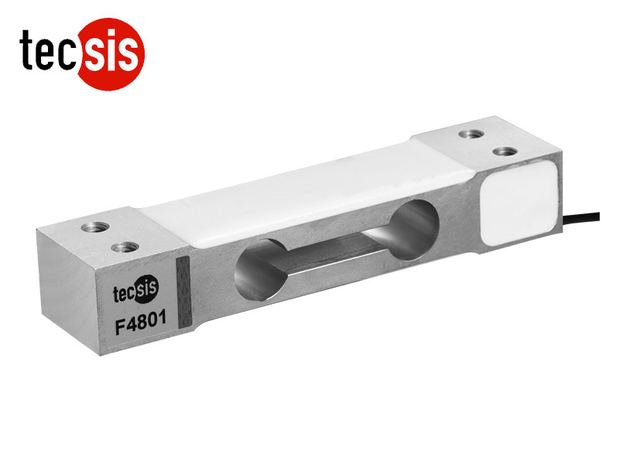

High Accuracy Strain Gauge Compression Load Cell for Weighing Scale
Model F4801
Overview
High Accuracy Strain Gauge Compression Load Cell for Weighing Scale supplied by Shenzhen) Sensors Co., Ltd. Key published specifications: Type Single Point Load Cell; Material Aluminum Alloy; Capacity 3kg~250kg; Oem/Odm Acceptable. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Type | Single Point Load Cell |
|---|---|
| Material | Aluminum Alloy |
| Capacity | 3kg~250kg |
| Oem/Odm | Acceptable |
| Protection Class | IP65 |
| Rated output | 2.0±10%mV/V |
| Zero balance | ±2% F.S. |
| Non-linearity | 0.02% F.S. |
| Hysteresis | 0.02% F.S. |
| Repeatability | 0.02% F.S. |
| Creep (30min) | 0.02% F.S. |
| Temp. effect on output | 0.02% F.S. / 10ºC |
| Temp. effect on zero | 0.02% F.S. / 10ºC |
| Insulation | ≥5000MΩ/ 100VDC |
| Recommended excitation | 10V |
| Maximum excitation | 15V |
| Compensated temp. range | - 10~40ºC |
| Operation temp. range | - 20~60ºC |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Cable size | Ø3×450 mm |
| Standard | carton |
| Model | F4801 |
| Technical parameters | Specifications |
| Input | Red(+) Black(-); |
| Output | Green(+) White(-); |
