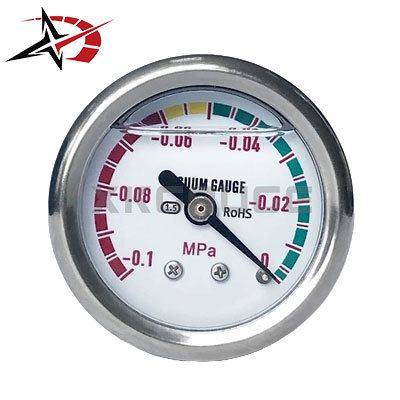

Vacuum 40mm Back Connection Pressure Gauge -0.1MPa Glycerin Filled Center for Vacuum System Monitoring
Model YN40Z
Overview
Vacuum 40mm Back Connection Pressure Gauge -0.1MPa Glycerin Filled Center for Vacuum System Monitoring, listed by Anhui Xingkong Instrument Co., Ltd in Anhui. Published figures include certification CE, ISO, product type Negative Pressure Gauge and pressure range -0.1 MPa ~ 0 MPa.
Technical specifications
| Certification | CE, ISO |
|---|---|
| Product Type | Negative Pressure Gauge |
| Pressure Range | -0.1 MPa ~ 0 MPa |
| Dial Size | 40 mm |
| Filling Medium | Glycerin |
| Mounting Type | Center Back Connection |
| Connection Thread | G1/8 / BSPT 1/8 (Optional) |
| Movement | Brass |
| Window Material | Polycarbonate |
| Case Material | Stainless Steel |
| Accuracy | Class 2.5 |
| Design Standard | EN 837-1 |
| Protection Rating | IP65 |
| Ambient Temperature | -20°C to +60°C |
| Suitable Media | Air and Non-corrosive Gases |
| Fill Medium | Glycerin |
| Connection | G1/8 BSPT 1/8 |
| Mounting | Center Back Connection |
| Protection | IP65 |
| Standard | EN 837-1 |
| Application | Vacuum Pump Filtration Pneumatic Systems |
| Vacuum measuring range | -0.1 MPa to 0 MPa |
| Equivalent pressure range | -1 Bar to 0 Bar |
