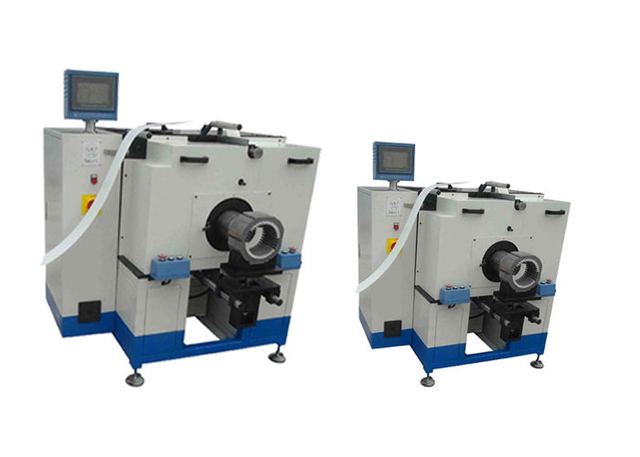

Upgraded Version Stator Slot Paper Inserting Machine SMT
Model CW200
Overview
Upgraded Version Stator Slot Paper Inserting Machine SMT supplied by SMT Intelligent Device Manufacturing (Zhejiang) Co., Ltd. Key published specifications: Core length 60-190mm; Stator I.D. 80 -150mm; Stator O.D. ≤210mm; Height of Edge Folded 3-7mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Core length | 60-190mm |
|---|---|
| Stator I.D. | 80 -150mm |
| Stator O.D. | ≤210mm |
| Height of Edge Folded | 3-7mm |
| Insulation paper's thickness | ≤0.35mm |
| Efficiency | 0.7-1 s/s |
| Power Supply | 380V/50/60Hz 0.75Kw |
| Weight | 550kg |
| Machine dimension | (L)1100*(W)900*(H)1500mm |
| Automatic Grade | Full-Automatic |
| Certification | ISO/SGS Audit |
