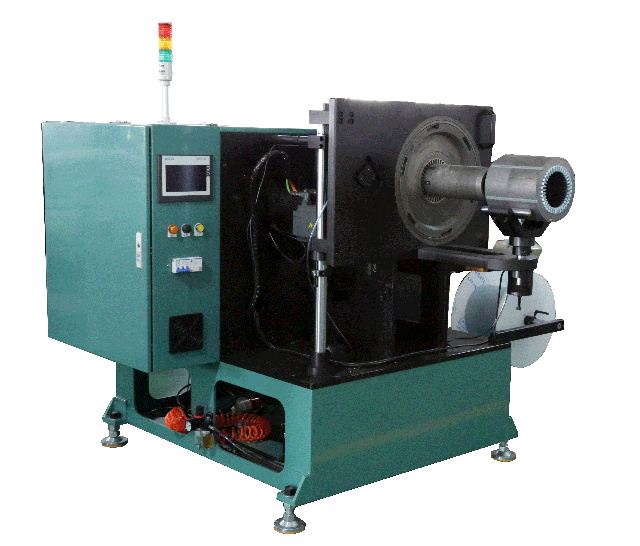

Labor Saving Automatic Stator Slot Insulation Machine
Model CW200
Overview
Labor Saving Automatic Stator Slot Insulation Machine supplied by SMT Intelligent Device Manufacturing (Zhejiang) Co., Ltd. Key published specifications: Core length 60-190mm; Stator I.D. 80-150mm; Stator O.D. ≤210mm; Height of Edge Folded 3-7mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Core length | 60-190mm |
|---|---|
| Stator I.D. | 80-150mm |
| Stator O.D. | ≤210mm |
| Height of Edge Folded | 3-7mm |
| Insulation paper thickness | ≤0.35mm |
| Efficiency | 0.7-1 s/s |
| Power Supply | 380V/50/60Hz 0.75Kw |
| Weight | 550kg |
| Machine dimensions | (L)1100*(W)900*(H)1500mm |
| Automatic Grade | Full-Automatic |
| Certification | ISO/SGS Audit |
