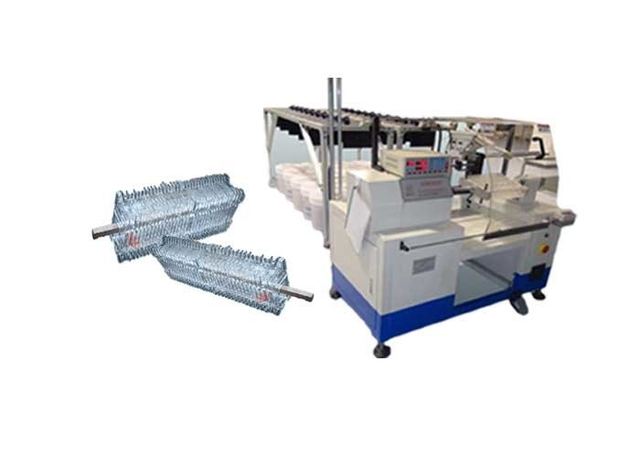

AC DC 3 Phase Stator Winding Machine 3200r/min 220V 7Kw
Model SMT-R160
Overview
AC DC 3 Phase Stator Winding Machine 3200r/min 220V 7Kw supplied by SMT Intelligent Device Manufacturing (Zhejiang) Co., Ltd. Key published specifications: Swing diameter ≤350mm; Effective length of tooling ≤400mm; Parallel wire number ≤16 pcs; Wire diameter 0.2~1.5mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Swing diameter | ≤350mm |
|---|---|
| Effective length of tooling | ≤400mm |
| Parallel wire number | ≤16 pcs |
| Wire diameter | 0.2~1.5mm |
| Max RPM | 1600RPM |
| Power supply | 220V/50/60Hz 1.5Kw |
| Air pressure | 0.4~0.6MPa |
| Machine Weight | 900Kg |
| Machine Dimension | 1550mm*1250mm*1550mm |
| Wire Speed | ≤3200r/min |
| Weight | 750kg |
| Dimension | (L)1800X(W)1100X2200mm |
| Certification | ISO9001/SGS Audit |
