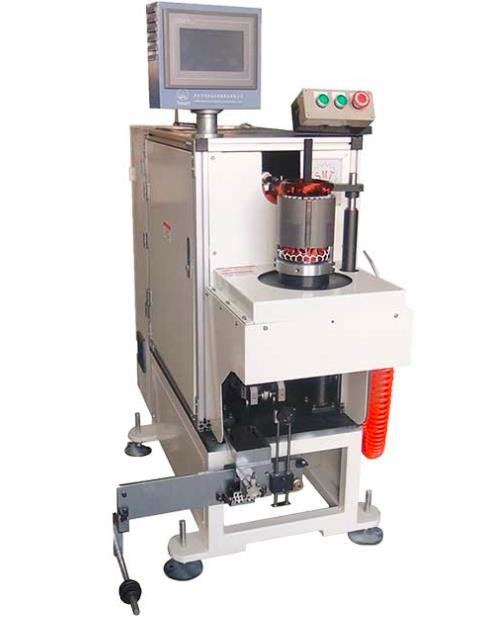

Single Side Stator Lacing Machine For 40-120mm ID
Model SMT- DB160
Overview
Single Side Stator Lacing Machine For 40-120mm ID, listed by SMT Intelligent Device Manufacturing (Zhejiang) Co., Ltd in Huzhou, Zhejiang. Core length 5 0-1 6 0mm, od range ≤ Φ 190mm and id range Φ 40-120 mm are among the specifications published.
Technical specifications
| Core length | 5 0-1 6 0mm |
|---|---|
| OD Range | ≤ Φ 190mm |
| ID Range | Φ 40-120 mm |
| End turn height | ≤ 50mm |
| Lacing mode | Slot by slot/Interval slot/Fancy lacing |
| Lacing speed | ≈ 0.7 s/s |
| Power supply | 2Kw |
| Weight | ≈ 700Kg |
| Dimension | (L) 1000 ×(W) 60 0×(H) 1250 mm |
| Certification | lSO/SGS Audit |
