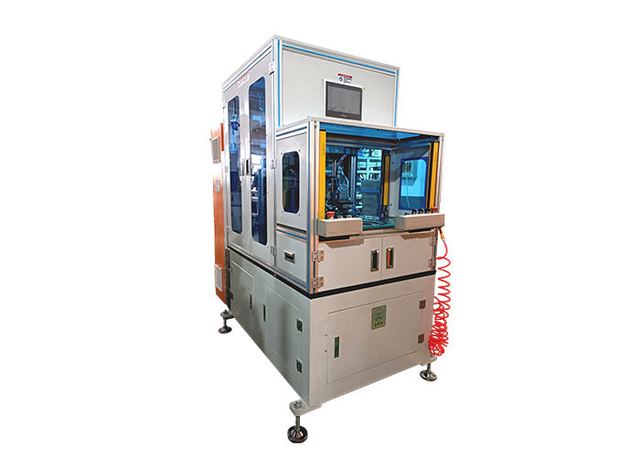

Turntable Double Sides Stator Lacing Machine

Model SMT-BZ7Z2

Turntable Double Sides Stator Lacing Machine

Overview

Turntable Double Sides Stator Lacing Machine supplied by SMT Intelligent Device Manufacturing (Zhejiang) Co., Ltd. Key published specifications: Machine Model SMT-BZ7Z2; Stator ID 40~100mm; Stator OD Max. 150mm; Stack length 30~150mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Machine ModelSMT-BZ7Z2
Stator ID40~100mm
Stator ODMax. 150mm
Stack length30~150mm
Over-hang height19~60mm
Lacing speed0.5~1.0sec/stitch
Power380V/50/60HZ 3.5KW
Machine weightabout 800kg
Machine dimensionL1600*W900*H1900mm
Servo ControlSeven Servos Driving
ControllerPLC
Air PressureMax: 1 Mpa
Max1 Mpa
CertificationISO / BV / SGS
PLC ControllerSiemens (Germany);
BearingNSK(Japan), SKF(Sweden);
Power supplythree-phase 380V/60Hz;
Weight≈1200Kg;(for reference, as per actual configuration)
Dimension mmL1600×W900×H1900;
