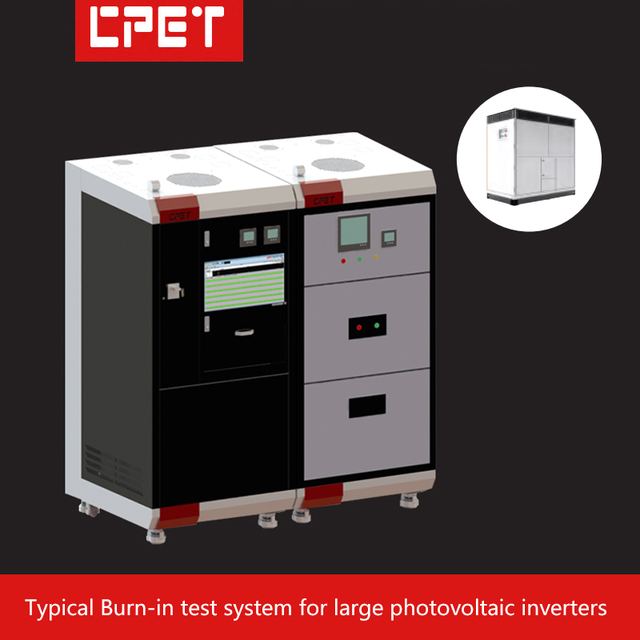

Typical Burn-in Test System Solutions For New Energy Large Photovoltaic Inverters
Model CP-XNY3005
Overview
Typical Burn-in Test System Solutions For New Energy Large Photovoltaic Inverters, listed by Shenzhen CPET Electronics Co., Ltd in Shenzhen, Guangdong. System structure 1 Control Cabinet + 2 Transformer Cabinets, total input power 100kW*2 and material Cold-rolled Sheet are among the specifications published.
Technical specifications
| System Structure | 1 Control Cabinet + 2 Transformer Cabinets |
|---|---|
| Total Input Power | 100kW*2 |
| Material | Cold-rolled Sheet |
| Overall size | 3500*1200*1900mm |
| Total input voltage | Three-phase five-wire system 220Vac (rated) |
| Total input current | 200A*2 |
| Fire protection requirements | Materials meet UL 94V0 rating |
| Safety requirements | Comply with IEC62368 international standard design requirements |
| Input winding current | 200A |
| AC Connector Type | Bolt bronze |
| Signal Connector Type | PA45 (L /N/PE) |
| Input power | 100kW |
| Feedback power | 500kW |
| Volume size | 1200*1200*1900mm |
| Product area air duct direction | Downwind, upwind |
| Certification | CE,ROHS |
