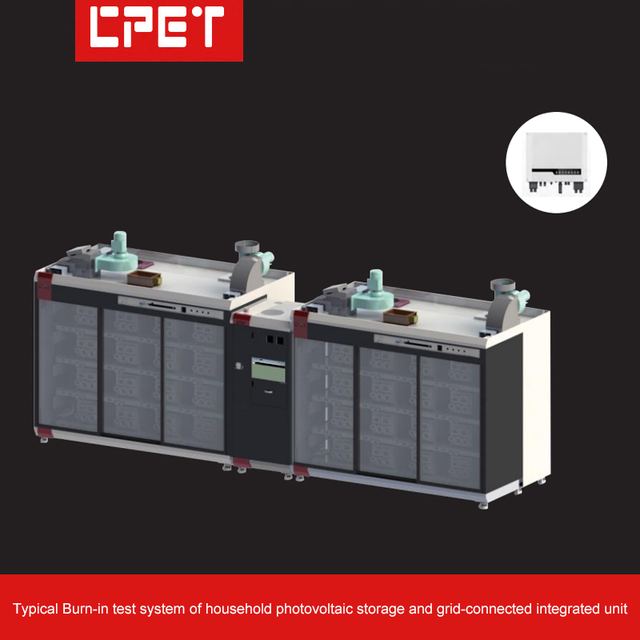

Typical Burn-in Test System Of Household Photovoltaic Storage And Grid-connected Integrated Unit
Overview
Typical Burn-in Test System Of Household Photovoltaic Storage And Grid-connected Integrated Unit supplied by Shenzhen CPET Electronics Co., Ltd. Key published specifications: System Structure 1 Control Cabinet + 2 Burn-in Cabinets; Overall Size 5100*1500*2050mm; Total Input Current 60A; Total Input Power 25kW. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| System Structure | 1 Control Cabinet + 2 Burn-in Cabinets |
|---|---|
| Overall Size | 5100*1500*2050mm |
| Total Input Current | 60A |
| Total Input Power | 25kW |
| Total input voltage | Three-phase five-wire system 220Vac (rated) |
| Fire protection requirements | Materials meet UL 94V0 rating |
| Safety requirements | Comply with IEC62368 international standard design requirements |
| Burn-in bits/layer | 3 bits/layer |
| Burn-in product input power | 7kW/bit |
| Burn-in product input voltage | 50-750Vdc/bit |
| Burn-in product input current | 25A/bit |
| Burn-in Product Load Category | 2.6kW/bit |
| Burn-in product output voltage | 380/220Vac/50Hz (rated) |
| Burn-in product output current | 4kW/bit |
| Burn-in product battery voltage | 48Vdc (nominal) |
| Burn-in product battery current | 80A/bit |
| Burn-in product output power | 6.6kW/bit |
| AC Connector Type | PA45 (L /N/PE) |
| DC Connector Type | MC4 photovoltaic connector (PV+/PV-/2 groups |
| Battery Connector Type | PA120(BAT+/BAT-) |
| Signal Connector Type | RJ45 (network port) |
| Input power | 70kW |
| Display accuracy | ±(1%+0.2%FS) |
| Control precision | ±(1%+0.2%FS) |
| Bad way of reporting | Audible alarm |
| Report format | CSV format |
| Statistics | Yield/CPK/Time Distribution |
| MES docking | Support |
| Scan speed | 5S |
| Display medium | Computers and Monitors |
