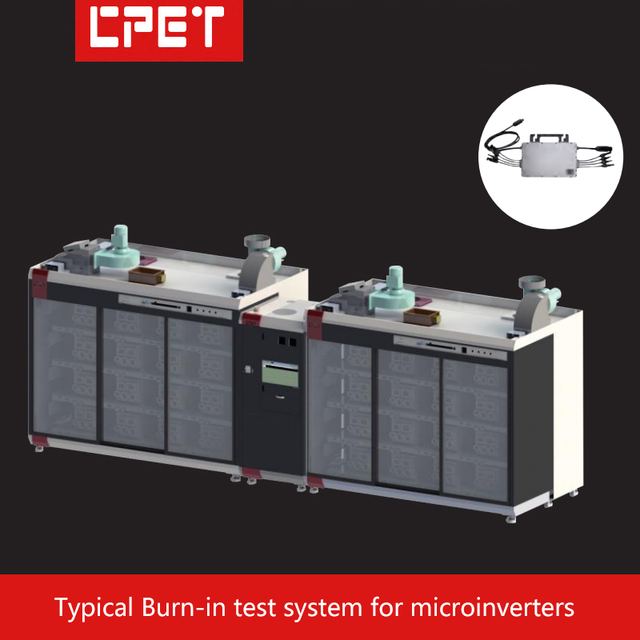

Cold Rolled Sheet Burn In Test Equipment For Microinverters
Overview
Cold Rolled Sheet Burn In Test Equipment For Microinverters supplied by Shenzhen CPET Electronics Co., Ltd. Key published specifications: Material Cold Rolled Sheet; Overall Size 5100*1050*2050mm; Total Input Current 100A; Total Input Power 50kW. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Material | Cold Rolled Sheet |
|---|---|
| Overall Size | 5100*1050*2050mm |
| Total Input Current | 100A |
| Total Input Power | 50kW |
| Total input voltage | Three-phase five-wire system 220Vac (rated) |
| Fire protection requirements | Materials meet UL 94V0 rating |
| Safety requirements | Comply with IEC62368 international standard design requirements |
| Burn-in product power | 3kW/bit |
| Burn-in product input voltage | 10-60Vdc/bit |
| Burn-in product input current | 50A/bit |
| Burn-in Product Load Category | 2.6kW/bit |
| Burn-in product output voltage | 380/220Vac/50Hz (rated) |
| Burn-in product output current | 16A/bit |
| AC Connector Type | Aviation plug (L1/L2/ L3/N/PE) |
| DC Connector Type | MC4 photovoltaic connector (PV+/PV-/4 groups) |
| Signal Connector Type | RJ45 (network port) |
| Input power | 105kW |
| Feedback power | 80kW |
| Constant temperature range | Room temperature+5°C-60°C |
| Open type | Sliding door/folding door/side door |
| Volume size | 2100*1050*2050mm |
| Dimensions in the product area | 1700*450*1500mm |
| Display accuracy | ±(1%+0.2%FS) |
| Control precision | ±(1%+0.2%FS) |
| Bad way of reporting | Audible alarm |
| Report format | CSV format |
| Statistics | Yield/CPK/Time Distribution |
| MES docking | Support |
| Scan speed | 5S |
| Display medium | Computers and Monitors |
