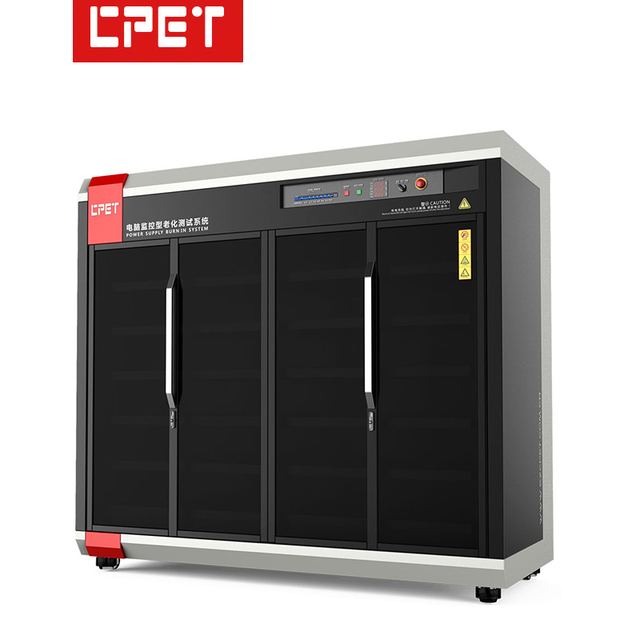

96CH 600W/CH Energy Saving Burn In Equipment for POE Switching Power Supply Aging Test System

Model CP-3002

96CH 600W/CH Energy Saving Burn In Equipment for POE Switching Power Supply Aging Test System

Overview

96CH 600W/CH Energy Saving Burn In Equipment for POE Switching Power Supply Aging Test System, listed under Power Supplies by Shenzhen CPET Electronics Co., Ltd in Shenzhen, Guangdong. Art.no. CPMT-600W96MT, type Burn In Equipment and power per channel 600W/CH are among the specifications published.

Technical specifications

Art.No.CPMT-600W96MT
TypeBurn In Equipment
Power per Channel600W/CH
Load Channels96CH
Load Voltage Range8-600V
Load Current Range0.05-12A/CH
Load Precision±(1%+0.1%FS)
Load ModesCC+CV+CR+CP+LED Mode
Product Zone Height170mm
Product Zone WidthSeries CC mode 380mm
Temperature ControlNormal temperature to 60℃
Trolley MaterialCold-rolled sheet with precision processing
Control ModeComputer-monitoring type power burn-in software
UUT Input ModeMulti-purpose socket/speaker wire clip/custom design
External Dimensions2050*1200*1900mm / custom design available
CertificationCE,ROHS
